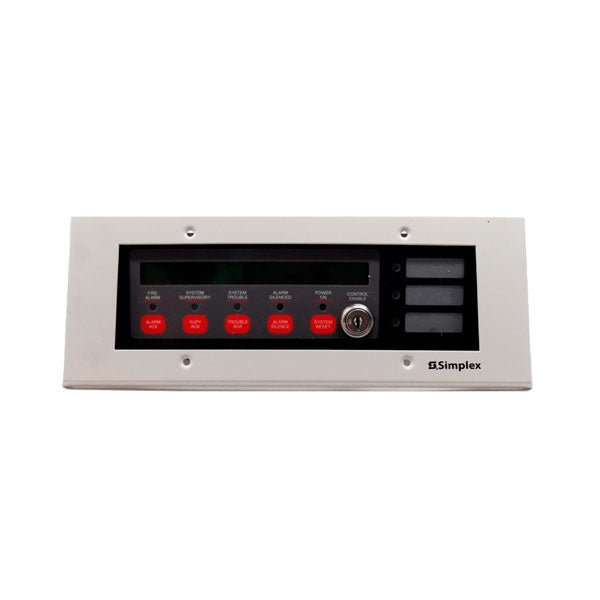

Simplex 4606-9101 remote LCD annunciator for Simplex 4010, 4006, and 4008 fire alarm control panels.

Compliance

• CSFM Listed
• FM Approved
• MEA

Key features

• Two-line, 40-character-per-line LCD with wide viewing angle, super-twist display, and LED backlighting
• Control switches and status LEDs for alarm acknowledge, supervisory, trouble acknowledge, alarm silence, and system reset (keyswitch-controlled access)
• Three programmable LED indicators (two selectable red/yellow, one selectable green/yellow) with provisions for custom labeling
• Status information transmitted over a single twisted shielded pair; separate 24 VDC panel power required
• Tone-alert sounder for local audible indication; lamp and LCD tested on each keyswitch activation

Simplex, a Johnson Controls brand, manufactures fire alarm control panels including the 4100ES, 4010ES, 4007ES, and 4006 intelligent addressable series. LCD annunciators in the 4606 series provide remote operator interface for Simplex panels, mounting flush on a standard 6-gang electrical box in commercial and institutional fire alarm installations.

Verify panel/device family compatibility before ordering.
