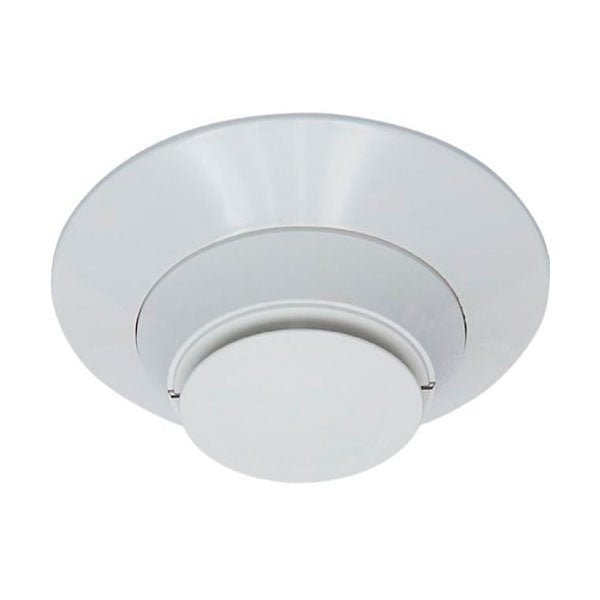

Silent Knight SK-PHOTO-T-W Addressable Photoelectric Smoke Detector with Thermal Sensor.

Compliance

• UL Listed
• FM Approved
• NFPA 72

Key features

• Combined photoelectric smoke sensing and fixed-temperature thermal detection in one head
• Operates on 15 to 32 VDC; weight 3.4 oz (95 g)
• LED status communication every 5 seconds confirms active SLC loop connection
• 10% to 93% non-condensing humidity tolerance
• Plug-in head with rotary address switches for field programming

The SK-PHOTO-T-W is an addressable combination photoelectric-thermal detector for the Silent Knight SK protocol SLC. The photoelectric element provides early detection of slow-smoldering fires; the fixed-temperature thermal element adds a secondary trigger for fast-flaming events. Both alarm conditions are reported independently to 5820XL and 6500 series fire alarm control panels (a Honeywell brand). Combination detectors are commonly specified in applications requiring dual-technology confirmation before initiating suppression systems.

Verify panel/device family compatibility before ordering.
