Silent Knight 005860R Remote LCD Annunciator.

Compliance

• UL Listed
• NFPA 72
• CSFM Approved
• MEA 429-92-E
• FM Approved

Key features

• 80-character backlit LCD display (4 lines x 20 characters) for event and status readout
• Tactile and audible feedback on keypad buttons; accepts user codes or fire fighter's key
• Five status LEDs: alarm, supervisory, trouble, silence, and AC power
• RS-485 SBUS interface; up to 8 units per system, wiring up to 6,000 ft from the FACP
• Standby 20 mA max, alarm 25 mA at 24 VDC; on-board piezo sounder

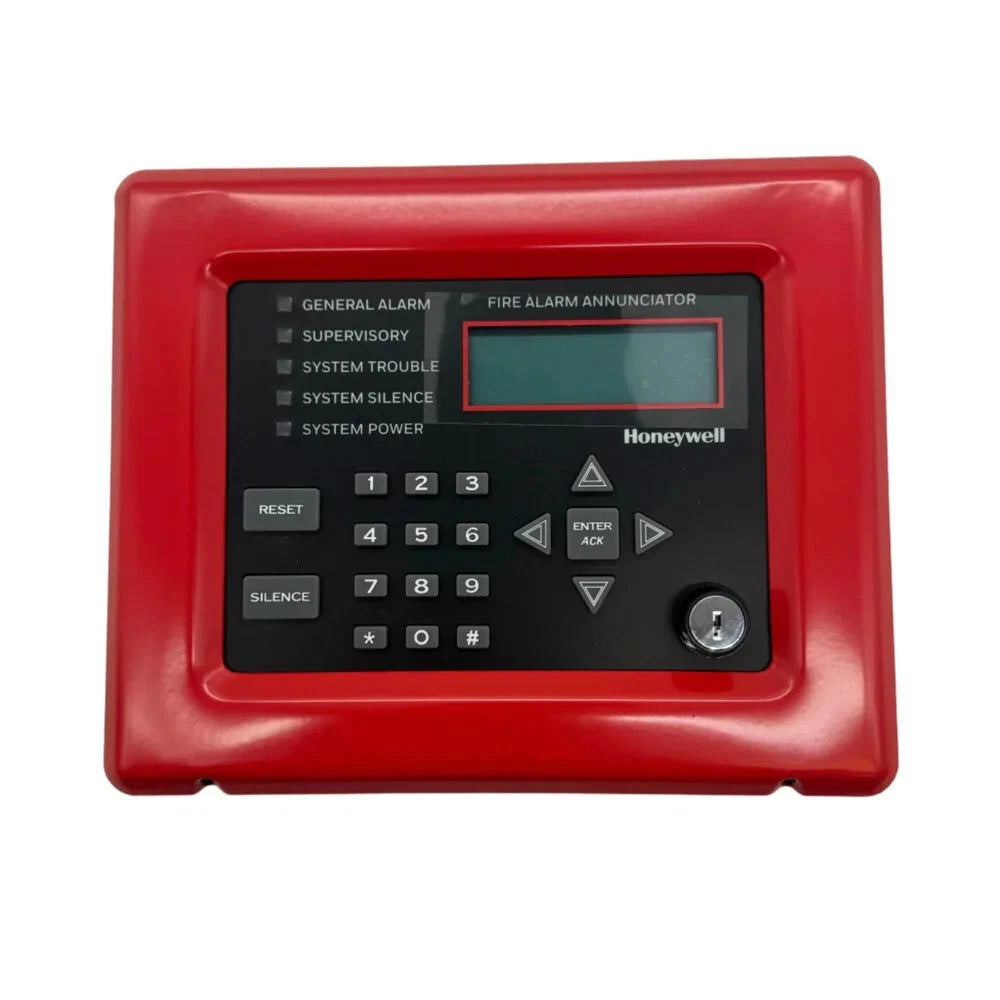

The Silent Knight 005860R is a red-housing remote LCD annunciator for 5820XL and 6500 series fire alarm control panels (a Honeywell brand). Its display and key interface mirror the panel's built-in annunciator, enabling system operators to acknowledge alarms, silence notification, and reset the system from a secondary location. MEA and CSFM listings support New York City and California compliant installations. Up to eight 005860R units can be installed per system on the SBUS RS-485 wiring network.

Verify panel/device family compatibility before ordering.
