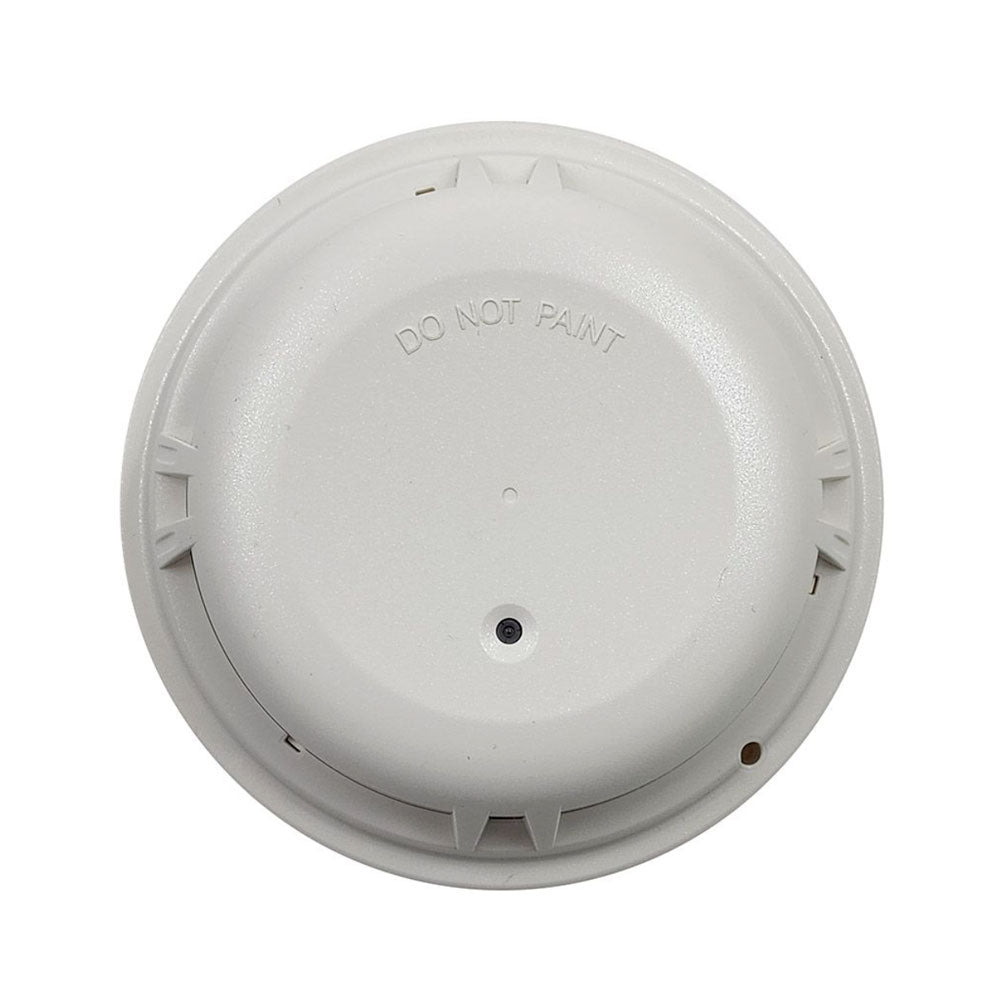

Siemens FDOOT441 addressable optical smoke detector for intelligent fire alarm systems.

Compliance

• UL 268
• UL 268A
• UL Listed
• FM Approved
• NFPA 72
• NFPA 76
• RoHS compliant

Key features

• Addressable optical (photoelectric) smoke detector for Cerberus PRO and FireFinder XLS SLC integration
• Operating voltage 13–32 VDC; operating temperature 32–120°F for standard commercial environments
• Velocity range 0–4,000 fpm supports ceiling and plenum-mount applications including duct configurations
• Programmable as a Very Early Warning Fire Detector (VEWFD) per NFPA 76 for telecom facility protection
• RoHS-compliant construction eliminates radioactive sources required by legacy ionization detectors

The FDOOT441 is a Siemens addressable optical smoke detector in the FDOOT family, compatible with Cerberus PRO and FireFinder XLS fire alarm systems. It uses a photoelectric detection chamber to identify smoke aerosols associated with both smoldering and some flaming fires. When programmed for high sensitivity, the detector meets NFPA 76 requirements as a VEWFD for telecommunications facility fire protection. It mounts on DB-series bases and communicates over the signal line circuit.

Verify panel/device family compatibility before ordering.
