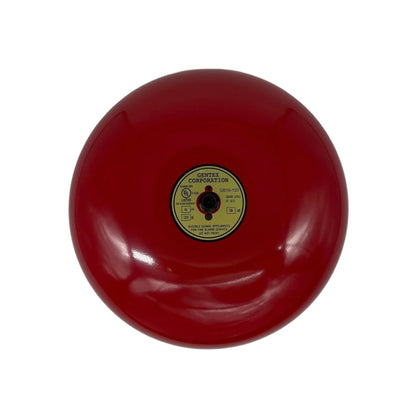

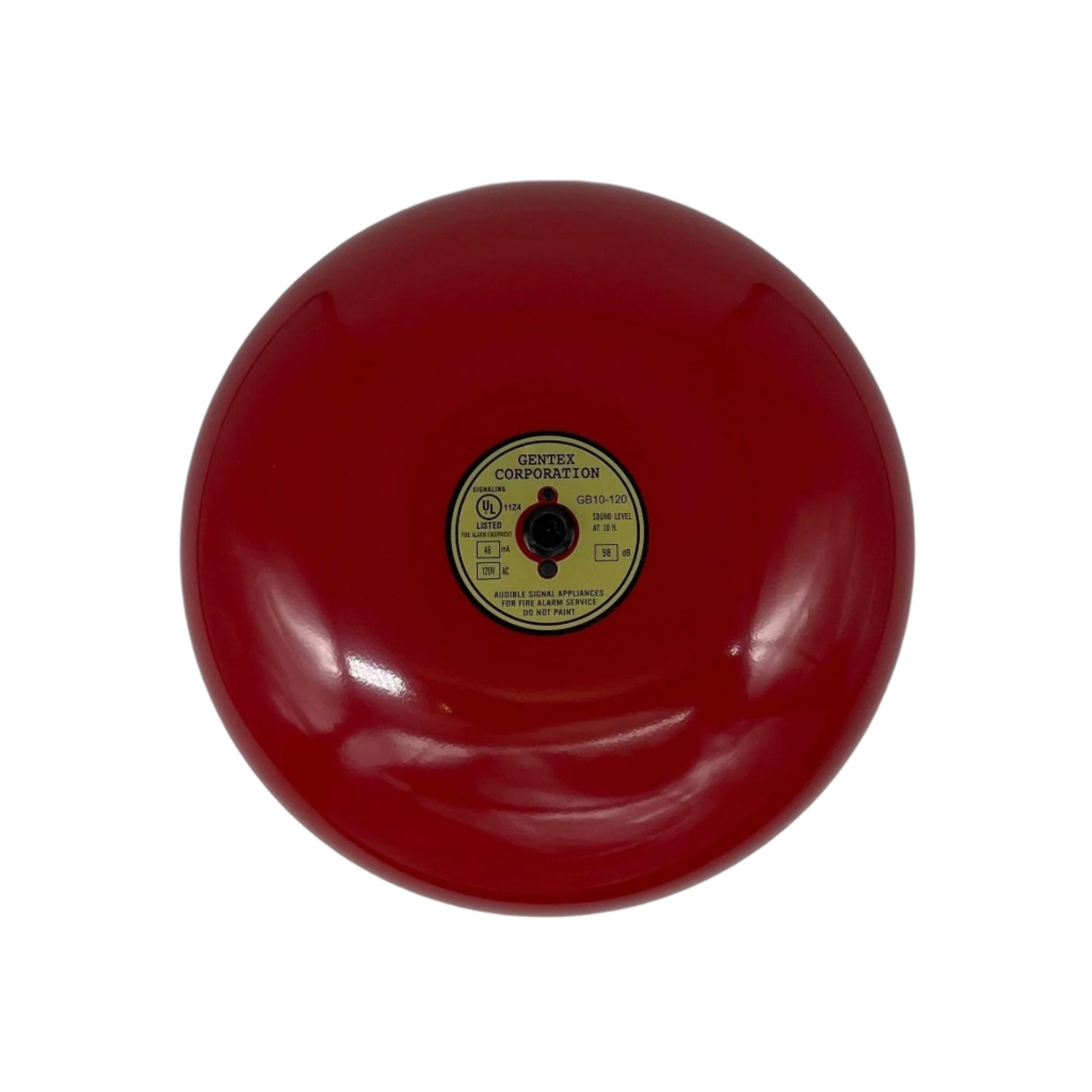

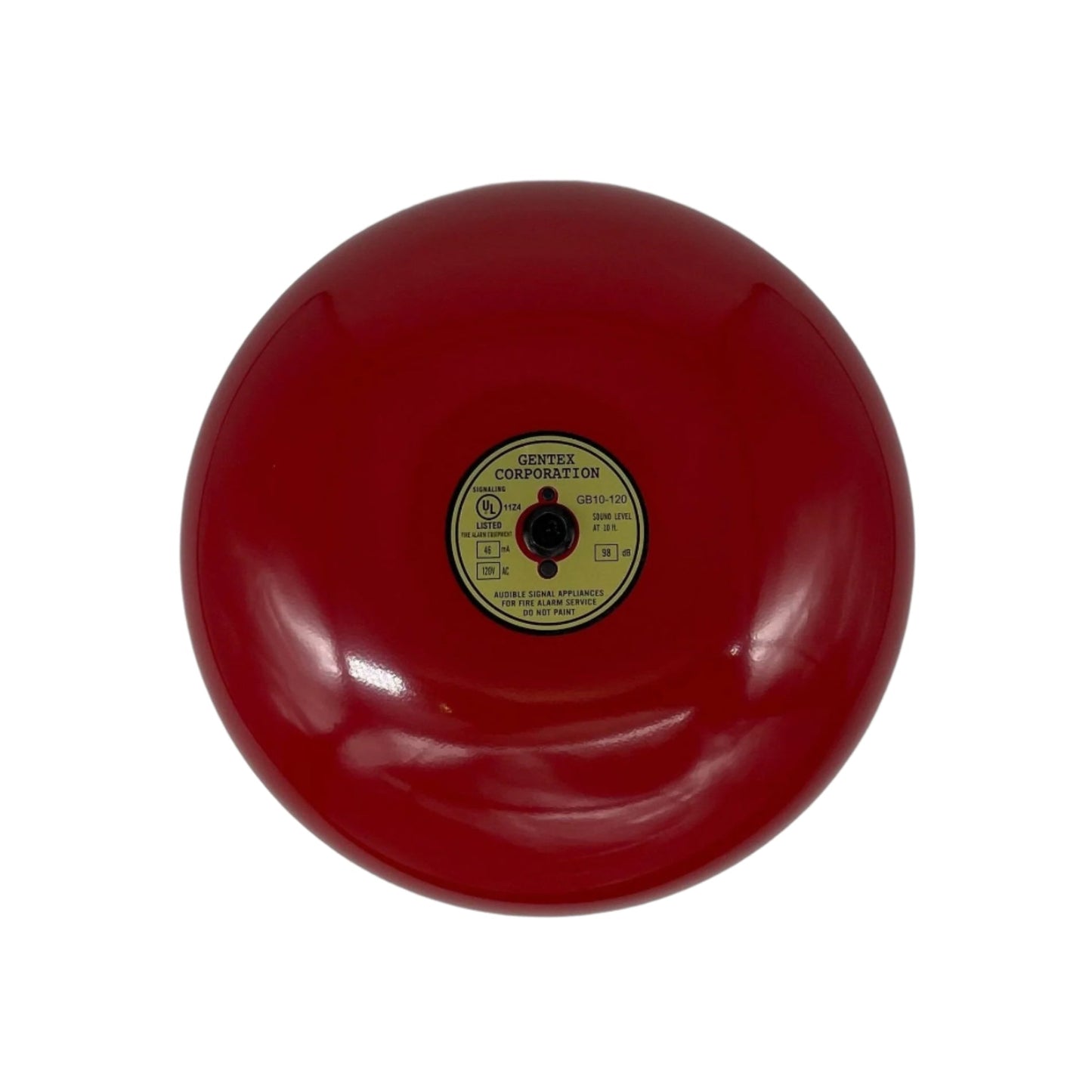

Gentex GB10-120 Audible Device, 10-inch motor-driven fire alarm bell operating on 120 VAC for commercial signaling.

Compliance

• UL 464 (audible signaling appliances)
• ULC S525
• CSFM listed
• NFPA 72

Key features

• 10-inch motor-driven bell delivering high-decibel audible output for large coverage areas
• 120 VAC supply for direct connection to AC-powered fire alarm circuits
• Larger bell housing provides increased sound projection compared to the 6-inch unit
• Surface-mount enclosure suited to corridors, stairwells, and exterior wall installations
• Red housing for standard fire alarm visual identification

Gentex Commercial Group offers motor-driven fire alarm bells in 6-inch and 10-inch sizes across 24 VDC and 120 VAC supply configurations. The GB10-120 fits applications requiring AC-powered high-output audible signaling, including legacy commercial installations, industrial buildings, and exterior signaling locations governed by NFPA 72.

Verify panel/device family compatibility before ordering.
