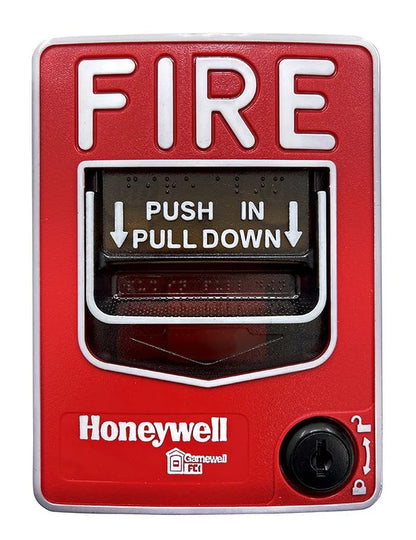

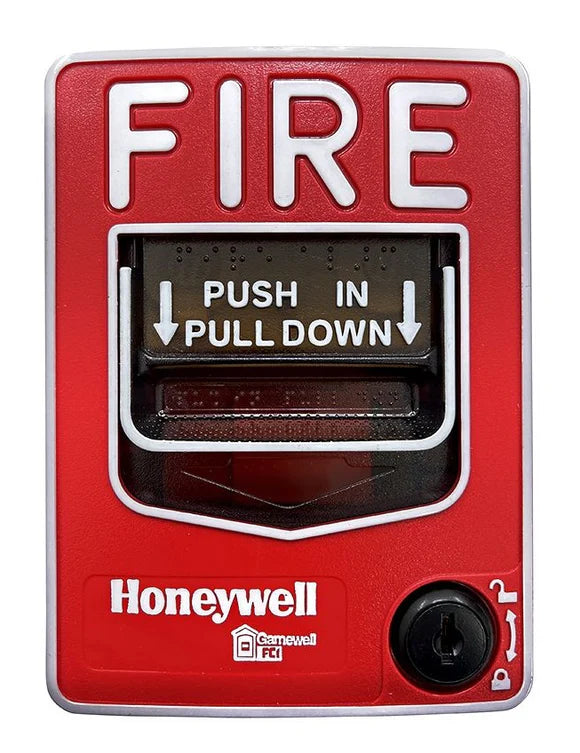

Gamewell-FCI MS-7AF Addressable Double-Action Manual Pull Station

Reliable Velociti Addressable Double-Action Manual Pull Station for Commercial Fire Alarm Systems

The Gamewell-FCI MS-7AF Velociti Addressable Double-Action Manual Pull Station is a Velociti addressable double-action manual pull station designed for use in compatible Gamewell-FCI fire alarm systems. This product supports professional fire alarm installations, service replacements, and system expansion projects where dependable performance and correct system compatibility are essential.

Addressable double-action pull station for Velociti SLCs. Bi-color LED, ADA-compliant, key-alike with all Gamewell-FCI panels.

Key Features

• Velociti addressable double-action pull station
• Registers exact address on Gamewell-FCI SLC at activation
• Bi-color LED: green poll-flash, red on activation
• Cover lift then handle pull (double-action)
• ADA-compliant, 5-lb max pull force
• Operating instructions and Braille engraved in handle
• Screw terminals for field wiring
• UL 864 9th Edition listed, FM approved
• Velociti CLIP system compatibility
• Designed for compatible Gamewell-FCI fire alarm systems

Ideal Applications

• Schools, theatres, lobbies, code typically requires double-action
• Commercial and institutional buildings with addressable systems
• Mixed-protocol installations (Velociti or CLIP loop cards)
• Where AHJ requires point identification of pull stations

Why Choose the MS-7AF?

The MS-7AF helps support a reliable, serviceable fire alarm system by matching the required device type, platform, and application needs. It is a strong choice for contractors, facility managers, and service companies looking for genuine Gamewell-FCI equipment for commercial fire protection projects.

Technical Specifications

• Manufacturer: Gamewell-FCI
• Model: MS-7AF
• Product Type: Velociti addressable double-action manual pull station
• Series: MS-7 Series
• Protocol / Platform: Velociti CLIP
• Voltage Range: 15 to 32 VDC SLC
• Standby Current: 0.00030 A (300 µA) supervisory
• Alarm Current: 0.0030 A; 0.007 A with LED
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• Humidity Range: 10% to 93% non-condensing
• Air Velocity Range: Not applicable
• Dimensions: 5⅝ in H × 4¼ in W × 1¼ in D (14 × 10.1 × 3.2 cm)
• Weight: Not specified
• Color: fire alarm red
• Certifications: UL Standard: UL 864 (9th Edition), UL Listing: S2465, FM Approved: 3023594
• Compatible Bases: BG12TR trim ring (semi-flush), SB-10 surface backbox, NY-PLATE NYC backplate
• Compatible Panels: Gamewell-FCI E3 Series, Gamewell-FCI S3 Series, Gamewell-FCI GWF-7075
