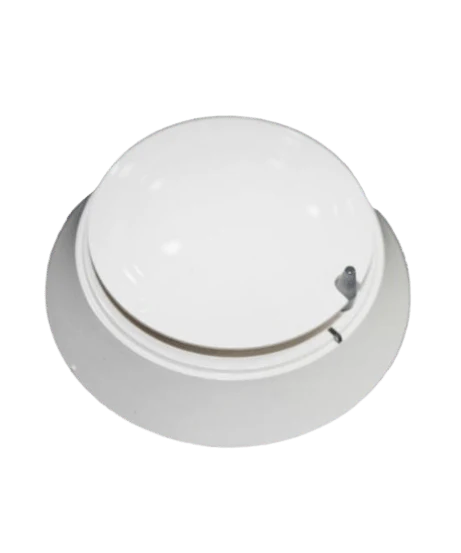

Gamewell-FCI MCS-PTIR Multi-Criteria Photo/Thermal/Infrared Detector

Reliable Multi-Criteria Photo/Thermal/Infrared Detector for Commercial Fire Alarm Systems

The Gamewell-FCI MCS-PTIR Multi-Criteria Photo/Thermal/Infrared Detector is a Multi-criteria photo/thermal/infrared detector designed for use in compatible Gamewell-FCI fire alarm systems. This product supports professional fire alarm installations, service replacements, and system expansion projects where dependable performance and correct system compatibility are essential.

Multi-criteria detector combining photoelectric, thermal, and IR sensing in one Velociti address. White, distinct smoke and heat alarms.

Key Features

• Three sensors: photoelectric + thermal + infrared
• Algorithm requires sensor agreement, high nuisance immunity
• Distinct smoke and heat alarms to panel, separate evacuation paths
• Velociti SLC, single address per detector
• Air velocity range 0 to 300 ft/min (ceiling/room applications)
• Recommended base: B200S sounder for general evacuation pattern
• UL 268 7th Edition + UL 521 listed
• Pick MCS-COF3 instead if CO coverage or HVAC velocity needed
• Velociti system compatibility
• Designed for compatible Gamewell-FCI fire alarm systems

Ideal Applications

• Theaters and performance venues with stage smoke effects
• Hotel and hospital lobbies and common areas
• Schools and educational facility ceilings
• Areas with moderate nuisance smoke risk requiring fire reliability

Why Choose the MCS-PTIR?

The MCS-PTIR helps support a reliable, serviceable fire alarm system by matching the required device type, platform, and application needs. It is a strong choice for contractors, facility managers, and service companies looking for genuine Gamewell-FCI equipment for commercial fire protection projects.

Technical Specifications

• Manufacturer: Gamewell-FCI
• Model: MCS-PTIR
• Product Type: Multi-criteria photo/thermal/infrared detector
• Series: MCS Multi-Criteria Detector Family
• Protocol / Platform: Velociti
• Voltage Range: 15 to 32 VDC
• Standby Current: 200 µA @ 24 VDC (1 comm every 5 sec, green LED blink)
• Alarm Current: 2 mA @ 24 VDC (red LED solid)
• Operating Temperature: 32°F to 100°F (0°C to 38°C)
• Humidity Range: 15% to 90% RH non-condensing
• Air Velocity Range: 0 to 300 ft/min (0 to 91.4 m/min)
• Dimensions: 2.0 in H × 6.2 in diameter (in B300-6 base)
• Weight: 3.4 oz (95 g)
• Color: white
• Certifications: UL Standards: UL 268 (7th Edition), UL 521, UL Listing: S1195, FM Approved
• Compatible Bases: B501-WHITE, B501-WHITE-BP, B300-6, B300-6-BP, B200S-WH (intelligent sounder), B200S-LF-WH (low-frequency sounder)
• Compatible Panels: Gamewell-FCI E3 Series, Gamewell-FCI S3 Series, Gamewell-FCI GWF-7075
