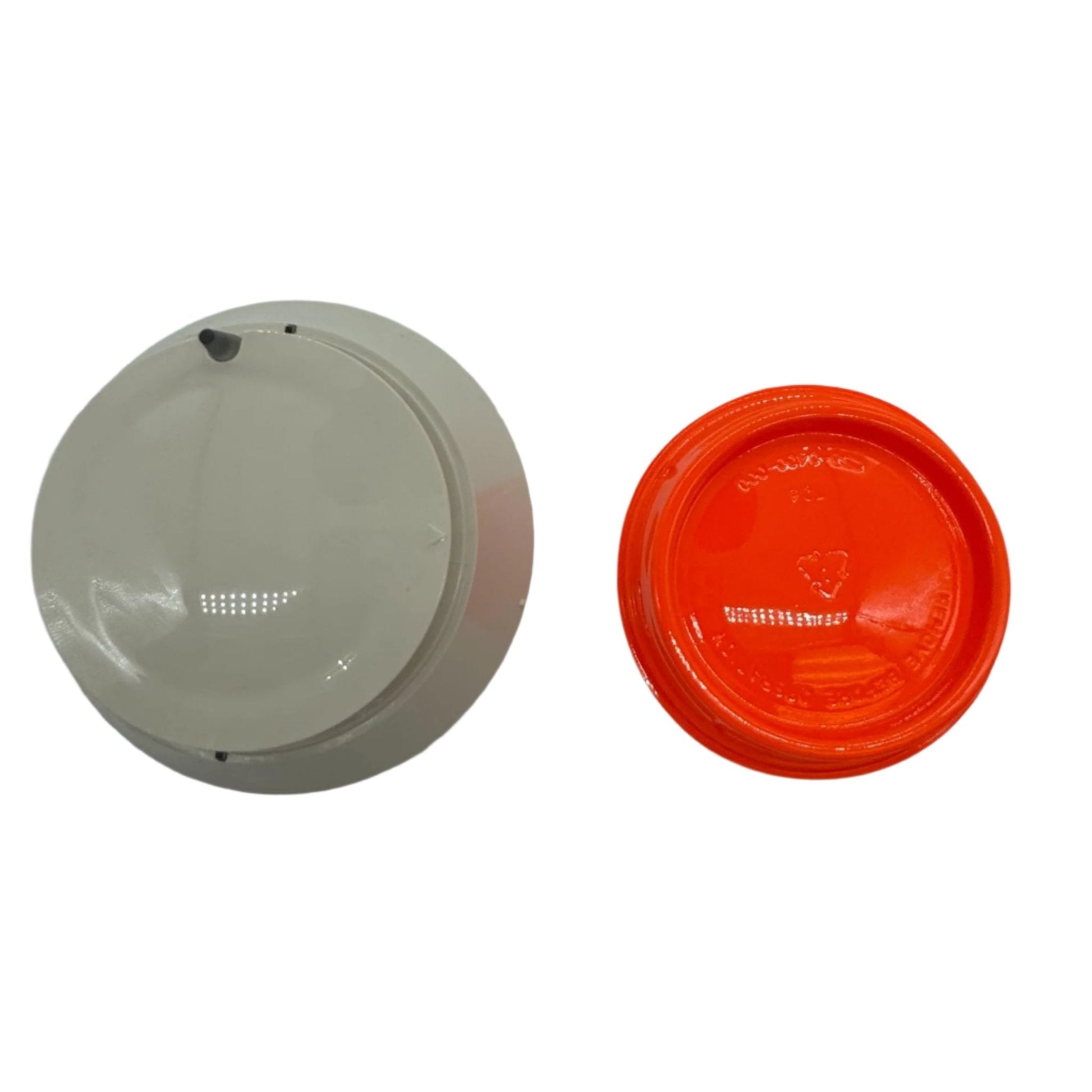

Gamewell-FCI MCS-COF3-IV Multi-Criteria Fire and Co Detector — Ivory Finish

Reliable Multi-Criteria Fire And Co Detector — Ivory Finish for Commercial Fire Alarm Systems

The Gamewell-FCI MCS-COF3-IV Multi-Criteria Fire and Co Detector — Ivory Finish is a Multi-criteria fire and CO detector — ivory finish designed for use in compatible Gamewell-FCI fire alarm systems. This product supports professional fire alarm installations, service replacements, and system expansion projects where dependable performance and correct system compatibility are essential.

Ivory multi-criteria detector combining smoke, heat, IR, and electrochemical CO sensing on one Velociti address. For retrofit color match.

Key Features

• Four sensing elements: photo + thermal + IR + electrochemical CO
• Ivory finish for retrofit color match on legacy installs
• Algorithm-driven fire detection with nuisance immunity
• Separate UL 2075 life-safety CO channel
• 10-year CO cell life with end-of-life warning
• Velociti SLC, single address per detector
• B200S-IV ivory sounder base recommended
• UL 268 7th Edition, UL 521, UL 2075 listed
• Velociti system compatibility
• Designed for compatible Gamewell-FCI fire alarm systems

Ideal Applications

• Retrofit in ivory-detector ceilings requiring CO + fire
• Healthcare and assisted-living facilities with legacy aesthetics
• Schools and institutional buildings under ICC 2018 update
• Mixed-protocol Gamewell-FCI installations

Why Choose the MCS-COF3-IV?

The MCS-COF3-IV helps support a reliable, serviceable fire alarm system by matching the required device type, platform, and application needs. It is a strong choice for contractors, facility managers, and service companies looking for genuine Gamewell-FCI equipment for commercial fire protection projects.

Technical Specifications

• Manufacturer: Gamewell-FCI
• Model: MCS-COF3-IV
• Product Type: Multi-criteria fire and CO detector — ivory finish
• Series: MCS Multi-Criteria Detector Family
• Protocol / Platform: Velociti
• Voltage Range: 15 to 32 VDC
• Standby Current: 200 µA @ 24 VDC (1 comm every 5 sec, green LED blink)
• Alarm Current: 2 mA @ 24 VDC (red LED solid)
• Operating Temperature: 32°F to 100°F (0°C to 38°C)
• Humidity Range: 15% to 90% RH non-condensing
• Air Velocity Range: 0 to 4,000 ft/min (0 to 1,219.2 m/min)
• Dimensions: 2.7 in H × 6.875 in diameter (in B200S base)
• Weight: 3.4 oz (95 g)
• Color: ivory
• Certifications: UL Standards: UL 268 (7th Edition), UL 521, UL 2075, UL Listing: S1195, CSFM: 7272-1703:0508
• Compatible Bases: B501-IV, B300-6-IV, B200S-IV (recommended — Temp 3 fire + Temp 4 CO), B200S-LF-IV (low-frequency sounder), B224BI-IV (isolator), B224RB-IV (relay)
• Compatible Panels: Gamewell-FCI E3 Series, Gamewell-FCI S3 Series, Gamewell-FCI GWF-7075
