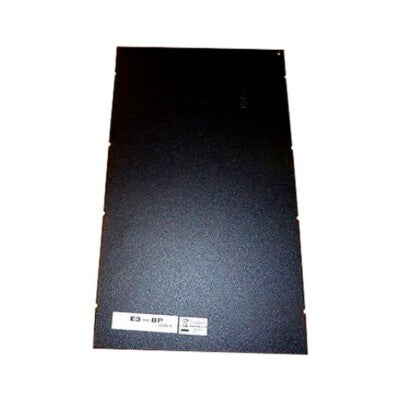

Gamewell-FCI E3-BP backplate enclosure for E3 Series fire alarm control panel mounting.

Compliance

• UL 864
• UL 2572
• NFPA 72
• FM Approved

Key features

• Enclosure dimensions 19 1/4” W × 10” H × 4 1/2” D (49 × 25 × 11.4 cm)
• Designed to house E3 Series control panel and annunciator circuit boards
• UL 864 and UL 2572 listed for fire alarm and mass notification service
• MEA FDNY approved for New York City fire alarm installations
• FM Approved for supervised fire protection systems

Gamewell-FCI, a Honeywell brand, manufactures the E3-BP as the standard backplate enclosure for the E3 Series intelligent addressable fire alarm control panel. The cabinet supports wall mount installation and provides the housing for E3 circuit boards and wiring terminations.

Verify panel/device family compatibility before ordering.
