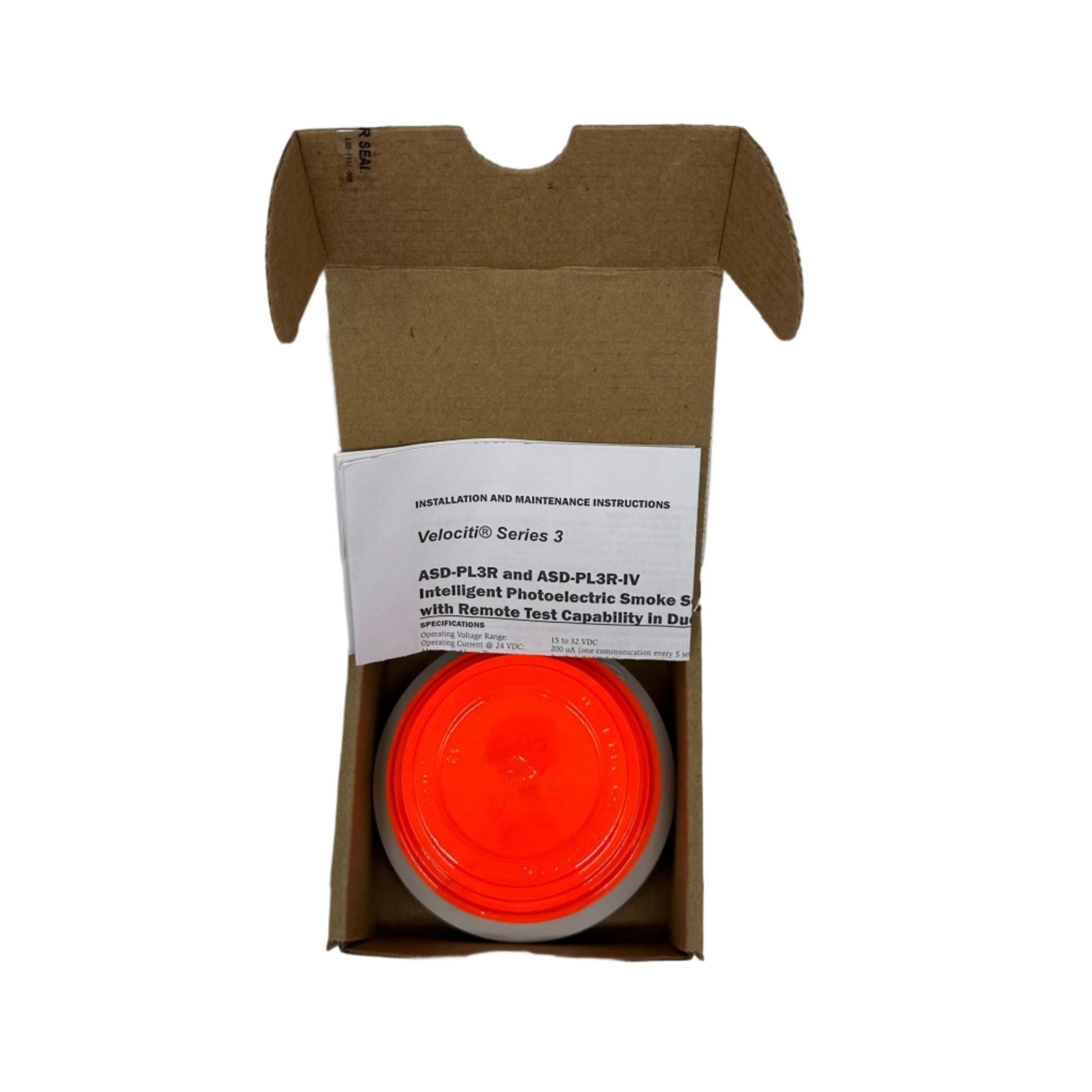

Gamewell-FCI ASD-PL3R Intelligent Photoelectric Smoke Detector With Remote Test (Duct)

Reliable Intelligent Photoelectric Smoke Detector With Remote Test (Duct) for Commercial Fire Alarm Systems

The Gamewell-FCI ASD-PL3R Intelligent Photoelectric Smoke Detector With Remote Test (Duct) is a Intelligent photoelectric smoke detector with remote test (duct) designed for use in compatible Gamewell-FCI fire alarm systems. This product supports professional fire alarm installations, service replacements, and system expansion projects where dependable performance and correct system compatibility are essential.

Velociti Series 3 photoelectric detector with remote-test capability. Designed for DNR/DNRW duct housings. White, Velociti-only protocol.

Key Features

• Remote-test capability for duct installations
• Velociti Series 3 photoelectric, intelligent addressable
• Re-engineered optical chamber meets UL 268 7th Edition
• Designed for pairing with DNR or DNRW duct housing
• Rotary decimal addressing, 01 to 159
• Dual bicolor LEDs, 360 degree visibility
• Operating temperature -4°F to 158°F when inside duct housing
• UL 268 7th Edition listed, FM approved
• Velociti system compatibility
• Designed for compatible Gamewell-FCI fire alarm systems

Ideal Applications

• Return-air and supply-air ducts (NFPA 90A, IMC 606)
• HVAC monitoring in commercial buildings
• Industrial ductwork and air-handling systems
• Locations where head access for testing is impractical

Why Choose the ASD-PL3R?

The ASD-PL3R helps support a reliable, serviceable fire alarm system by matching the required device type, platform, and application needs. It is a strong choice for contractors, facility managers, and service companies looking for genuine Gamewell-FCI equipment for commercial fire protection projects.

Technical Specifications

• Manufacturer: Gamewell-FCI
• Model: ASD-PL3R
• Product Type: Intelligent photoelectric smoke detector with remote test (duct)
• Series: Velociti Series 3 Photoelectric
• Protocol / Platform: Velociti
• Voltage Range: 15 to 32 VDC
• Standby Current: 200 µA @ 24 VDC (1 comm every 5 sec, green LED enabled)
• Alarm Current: 2 mA @ 24 VDC (red LED enabled)
• Operating Temperature: 32°F to 122°F standard; -4°F to 158°F in DNR/DNRW duct housing
• Humidity Range: 10% to 93% non-condensing
• Air Velocity Range: 0 to 4,000 ft/min (0 to 1,219.2 m/min)
• Dimensions: 2.0 in (51 mm) installed in B300-6 base
• Weight: 3.4 oz (96.4 g)
• Color: white
• Certifications: UL Standard: UL 268 (7th Edition), UL Listing: S2332, FM Approved: 3023594
• Compatible Bases: B501-WHITE, B501-WHITE-BP, B300-6, B300-6-BP, B200SR-WH, B200S-WH
• Compatible Panels: Gamewell-FCI E3 Series (full Velociti support), Gamewell-FCI S3 Series (full Velociti support), Gamewell-FCI GWF-7075 (Velociti only — same as this detector)
