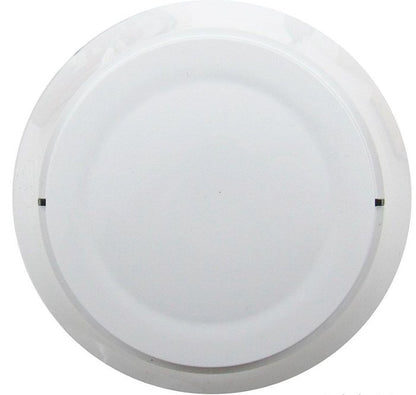

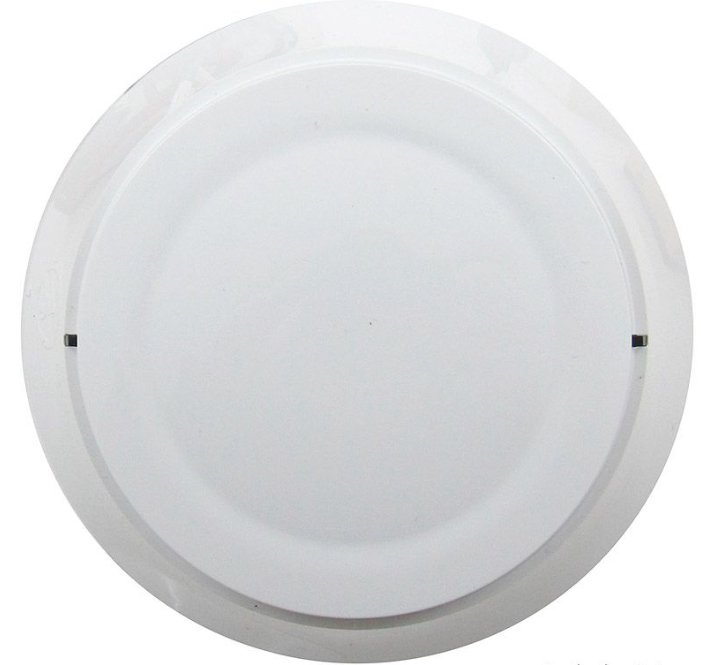

Gamewell-FCI ASD-PL3-IV Intelligent Photoelectric Smoke Detector — Ivory, Velociti + Clip

Reliable Intelligent Photoelectric Smoke Detector — Ivory, Velociti + Clip for Commercial Fire Alarm Systems

The Gamewell-FCI ASD-PL3-IV Intelligent Photoelectric Smoke Detector — Ivory, Velociti + Clip is a Intelligent photoelectric smoke detector — ivory, Velociti + CLIP designed for use in compatible Gamewell-FCI fire alarm systems. This product supports professional fire alarm installations, service replacements, and system expansion projects where dependable performance and correct system compatibility are essential.

Ivory Velociti Series 3 photoelectric detector with CLIP backwards-compat. Drop-in successor to the legacy ASD-PL2F.

Key Features

• Ivory finish for retrofit color match on legacy installs
• Velociti Series 3 photoelectric, CLIP backwards-compat
• Drop-in replacement for the end-of-life ASD-PL2F
• Re-engineered optical chamber meets UL 268 7th Edition
• Rotary decimal addressing, 01 to 159
• Dual bicolor LEDs, 360 degree visibility
• Programmable sensitivity via panel software
• UL 268 7th Edition listed, FM approved
• Velociti CLIP system compatibility
• Designed for compatible Gamewell-FCI fire alarm systems

Ideal Applications

• Retrofit jobs on existing CLIP loops
• Mixed-protocol Gamewell-FCI systems running Velociti + CLIP
• Ceilings with existing ivory detectors where color match matters
• Commercial and institutional buildings with legacy fire systems

Why Choose the ASD-PL3-IV?

The ASD-PL3-IV helps support a reliable, serviceable fire alarm system by matching the required device type, platform, and application needs. It is a strong choice for contractors, facility managers, and service companies looking for genuine Gamewell-FCI equipment for commercial fire protection projects.

Technical Specifications

• Manufacturer: Gamewell-FCI
• Model: ASD-PL3-IV
• Product Type: Intelligent photoelectric smoke detector — ivory, Velociti + CLIP
• Series: Velociti Series 3 Photoelectric
• Protocol / Platform: Velociti CLIP
• Voltage Range: 15 to 32 VDC
• Standby Current: 200 µA @ 24 VDC (1 comm every 5 sec, green LED enabled)
• Alarm Current: 2 mA @ 24 VDC (red LED enabled)
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Humidity Range: 10% to 93% non-condensing
• Air Velocity Range: 0 to 4,000 ft/min (0 to 1,219.2 m/min)
• Dimensions: 2.0 in (51 mm) installed in B300-6 base
• Weight: 3.4 oz (96.4 g)
• Color: ivory
• Certifications: UL Standard: UL 268 (7th Edition), UL Listing: S2332, FM Approved: 3023594
• Compatible Bases: B501-IV, B300-6-IV, B200SR-IV, B200S-IV, B200SR-LF-IV, B200S-LF-IV
• Compatible Panels: Gamewell-FCI E3 Series (full Velociti + CLIP support), Gamewell-FCI S3 Series (full Velociti + CLIP support), Gamewell-FCI GWF-7075 (Velociti only — CLIP fallback unused on this panel)
