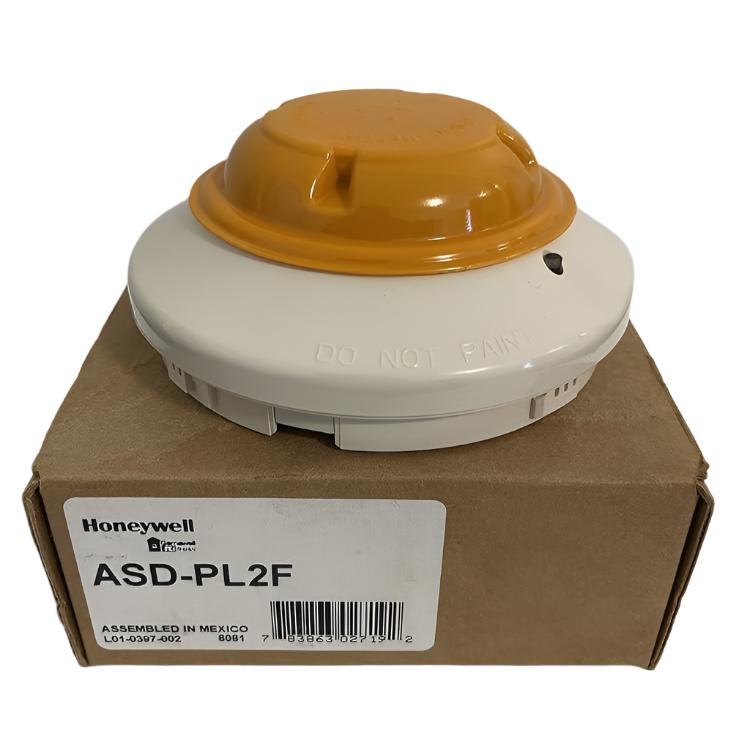

Gamewell-FCI ASD-PL2F Legacy Clip-Protocol Photoelectric Smoke Detector — Service Part Only

Reliable Legacy Clip-Protocol Photoelectric Smoke Detector — Service Part Only for Commercial Fire Alarm Systems

The Gamewell-FCI ASD-PL2F Legacy Clip-Protocol Photoelectric Smoke Detector — Service Part Only is a Legacy CLIP-protocol photoelectric smoke detector — service part only designed for use in compatible Gamewell-FCI fire alarm systems. This product supports professional fire alarm installations, service replacements, and system expansion projects where dependable performance and correct system compatibility are essential.

Velociti Series 2 photoelectric smoke detector. CLIP-protocol service part for legacy installs. Use ASD-PL3-IV for new builds.

Key Features

• Velociti Series 2 photoelectric (legacy generation)
• CLIP-protocol service part for in-place Velociti Series 2 installs
• Drop-in replacement on existing CLIP loops where model match is required
• Rotary decimal addressing, 01 to 159
• Programmable sensitivity via panel software
• Same base ecosystem as Series 3 photoelectric
• UL 268 listed, FM approved (per current 9020-0617 rev K)
• For new installs use ASD-PL3-IV instead, see cross-reference
• Velociti CLIP system compatibility
• Designed for compatible Gamewell-FCI fire alarm systems

Ideal Applications

• Service / break-fix on existing Velociti Series 2 installs
• Loops where the AHJ requires exact-model detector matching
• Legacy Gamewell-FCI 7100 / 7075 / IdentiFlex 602 systems
• Not recommended for new construction (specify ASD-PL3 or ASD-PL3-IV)

Why Choose the ASD-PL2F?

The ASD-PL2F helps support a reliable, serviceable fire alarm system by matching the required device type, platform, and application needs. It is a strong choice for contractors, facility managers, and service companies looking for genuine Gamewell-FCI equipment for commercial fire protection projects.

Technical Specifications

• Manufacturer: Gamewell-FCI
• Model: ASD-PL2F
• Product Type: Legacy CLIP-protocol photoelectric smoke detector — service part only
• Series: Velociti Series 2 Photoelectric (legacy)
• Protocol / Platform: Velociti CLIP
• Voltage Range: 15 to 32 VDC
• Standby Current: 200 µA @ 24 VDC (one comm every 5 sec, green LED enabled)
• Alarm Current: 2 mA @ 24 VDC (red LED enabled)
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Humidity Range: 10% to 93% non-condensing
• Air Velocity Range: 0 to 4,000 ft/min
• Dimensions: 2.0 in (51 mm) installed in B300-6 base
• Weight: 3.4 oz (96.4 g)
• Color: white
• Certifications: UL Standard: UL 268, UL Listing: S2332 (per current doc, verify on legacy rev J for engineering-grade Series 2)
• Compatible Bases: B501-IV, B501-WHITE, B300-6, B300-6-IV, B200S-WH, B200S-IV
• Compatible Panels: Gamewell-FCI E3 Series, Gamewell-FCI S3 Series, Gamewell-FCI 7100 Series
