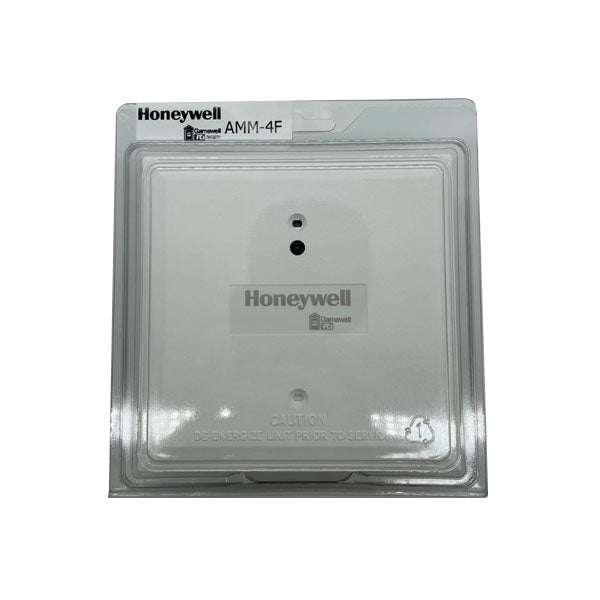

Gamewell-FCI AMM-4F Addressable Monitor Module — Single Class A Or Class B Idc

Reliable Addressable Monitor Module — Single Class A Or Class B Idc for Commercial Fire Alarm Systems

The Gamewell-FCI AMM-4F Addressable Monitor Module — Single Class A Or Class B Idc is a Addressable monitor module — single Class A or Class B IDC designed for use in compatible Gamewell-FCI fire alarm systems. This product supports professional fire alarm installations, service replacements, and system expansion projects where dependable performance and correct system compatibility are essential.

Velociti monitor module with single IDC, jumper-selectable Class A (Style D) or Class B (Style B). Mounts in 4-inch square box.

Key Features

• Single IDC, jumper-selectable Class A (Style D) or Class B (Style B)
• Class A support is the main differentiator vs AMM-2F
• 47 kΩ EOL resistor (Class B mode)
• Line resistance up to 40 Ω, supports linear heat detection
• Velociti SLC, 01 to 159 rotary addressing
• Bi-color LED, green poll-flash, red on activation
• Mounts in 4-inch square junction box, 2⅛ in deep
• Use AMM-4SF for 2-wire smoke detector loops
• Velociti system compatibility
• Designed for compatible Gamewell-FCI fire alarm systems

Ideal Applications

• High-life-safety occupancies requiring Class A IDC wiring
• Linear heat detection circuits (up to 40 Ω line resistance)
• Waterflow / tamper / manual station supervision
• 4-wire projected beam smoke detector monitoring

Why Choose the AMM-4F?

The AMM-4F helps support a reliable, serviceable fire alarm system by matching the required device type, platform, and application needs. It is a strong choice for contractors, facility managers, and service companies looking for genuine Gamewell-FCI equipment for commercial fire protection projects.

Technical Specifications

• Manufacturer: Gamewell-FCI
• Model: AMM-4F
• Product Type: Addressable monitor module — single Class A or Class B IDC
• Series: AMM Monitor Module Family
• Protocol / Platform: Velociti
• Voltage Range: Operates from SLC
• Standby Current: 0.000375 A (LED flashing)
• Alarm Current: 0.005 A (LED lit)
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• Humidity Range: 10% to 93% non-condensing
• Air Velocity Range: Not applicable
• Dimensions: 4.5 in H × 4 in W × 1.25 in D (11.4 × 10.2 × 3.2 cm)
• Weight: Not specified
• Certifications: UL Standard: UL 864 (9th Edition), UL Listing: S1949, FM Approved: 3023594
• Compatible Bases: 4-inch square junction box, 2⅛ in deep
• Compatible Panels: Gamewell-FCI E3 Series, Gamewell-FCI S3 Series, Gamewell-FCI GWF-7075
