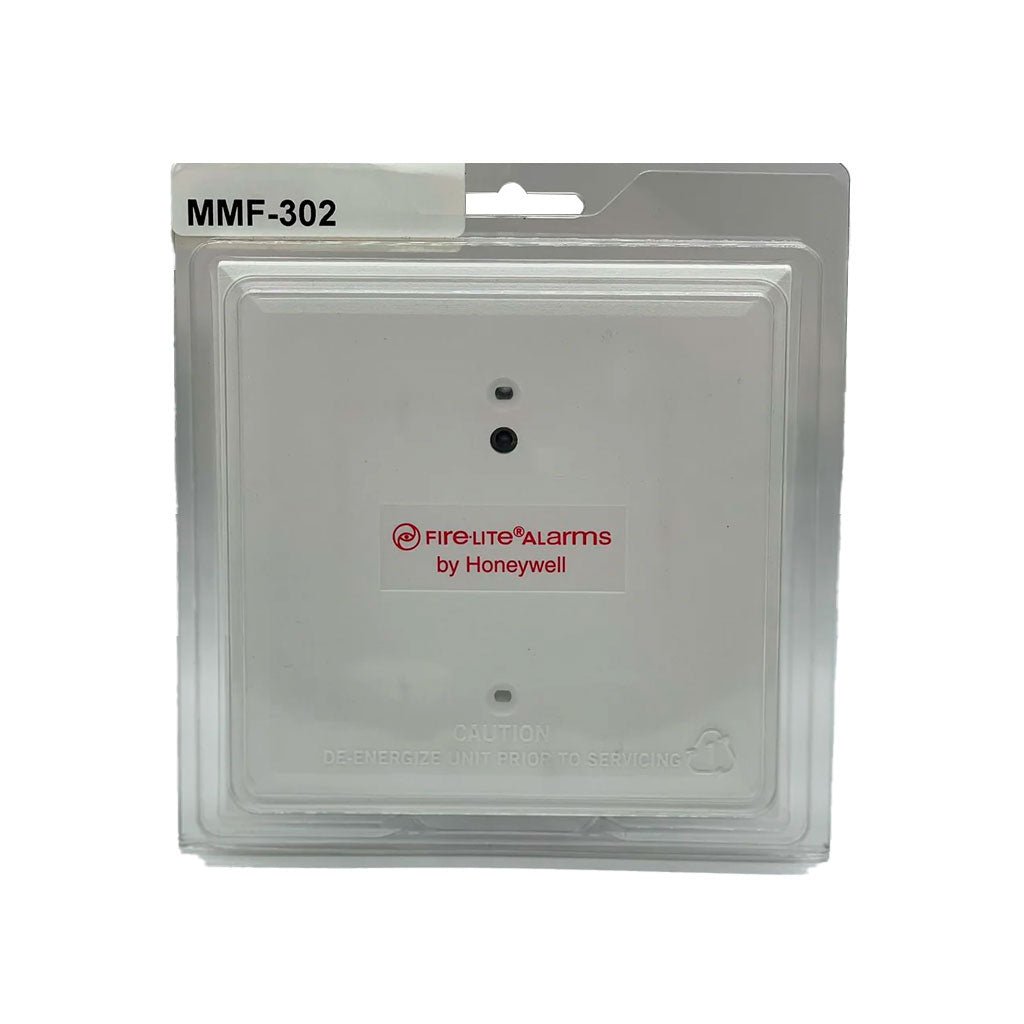

Fire-Lite MMF-302 addressable monitor module with isolated input.

Compliance

• UL listed compatible
• NFPA 72 compatible

Key features

• Isolated dry-contact input circuit for monitoring conventional alarm initiating devices
• Operating temperature 32°F to 120°F (0°C to 49°C)
• Mounts to a 4-inch square by 2-1/8-inch deep electrical box
• Humidity rated 10% to 93% non-condensing

The MMF-302 is an addressable monitor module with an isolated input design, allowing it to supervise normally-open or normally-closed dry-contact devices while maintaining electrical isolation between the SLC and the monitored circuit. This isolation protects the SLC bus from wiring faults in supervised conventional circuits such as waterflow switches, tamper switches, or four-wire conventional detector zones. It communicates with compatible Fire-Lite addressable panels via two-wire SLC and occupies a single device address on the loop.

Verify panel/device family compatibility before ordering.
