Fire-Lite

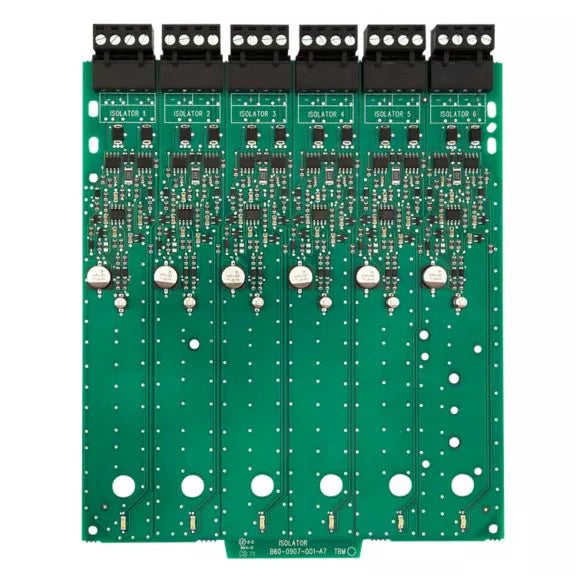

Fire-Lite ISO-6 Isolator Module
1 in stock
Fire-Lite ISO-6 short-circuit isolator module for addressable SLC loops.
Compliance
- UL 864 listed
- UL 268 listed (compatible with listed detector circuit)
- NFPA 72 compatible
Key features
- Automatically isolates a shorted SLC segment to maintain loop continuity on either side of the fault
- Mounts in-line on the SLC loop between device groups
- Dimensions 12-1/4"W x 11-1/2"H x 7/8"D; surface or flush-mount installation
- Restores automatically when the fault is cleared
Short-circuit isolators protect addressable SLC loop integrity by electrically disconnecting a faulted segment when a wire-to-wire short is detected. Without isolators, a single short circuit on an addressable loop can disable all devices beyond that point. NFPA 72 and many local codes require SLC isolators to be placed at regular intervals — typically at the entry of each zone, floor, or protected area — so that a wiring fault disables the fewest possible devices. The ISO-6 automatically restores the isolated segment after the fault is cleared, minimizing the restoration burden on the service technician.
Verify panel/device family compatibility before ordering.
