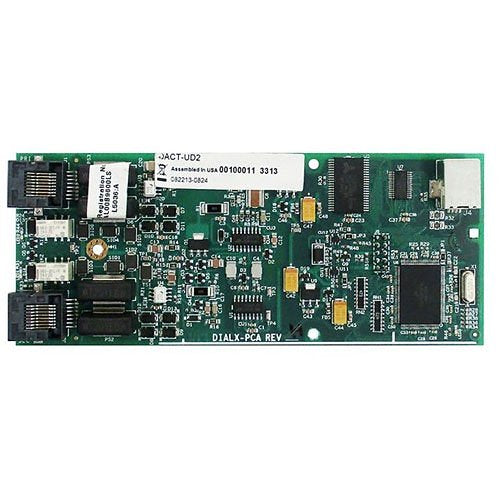

Fire-Lite DACT-UD2 digital alarm communicator transmitter for remote monitoring.

Compliance

• UL 864 listed
• ULC listed
• FM Approved
• NFPA 72 compatible

Key features

• Digital communicator transmits alarm and supervisory signals to a central monitoring station
• Surface mount form factor (6"W x 7-3/4"H x 1-7/16"D)
• Designed for connection to compatible Fire-Lite FACP models
• Supports NFPA 72 monitoring requirements for commercial fire alarm systems

Digital alarm communicator transmitters (DACTs) connect a local fire alarm control panel to a UL-listed central monitoring station over telephone lines or digital network paths. The DACT-UD2 captures alarm, supervisory, and trouble conditions from the host panel and formats them for transmission per NFPA 72 communication requirements. It is typically installed inside or adjacent to the main FACP enclosure and requires separate programming to associate the correct account and routing information with the monitoring station.

Verify panel/device family compatibility before ordering.
