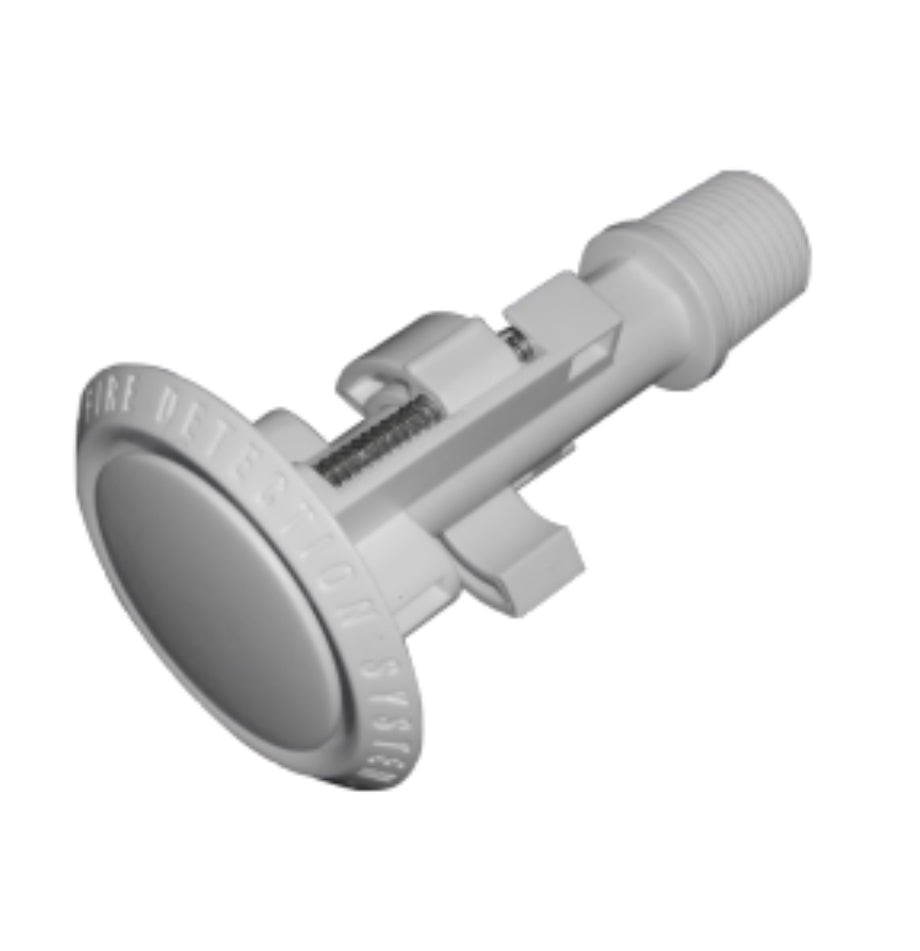

Vesda VSP-877 flush mount sampling point for VESDA aspirating smoke detection pipe networks.

Key features

• Flush mount design installs from the underside of a ceiling tile without requiring access above the ceiling
• Adjustable wing-lock accommodates different ceiling panel thicknesses for secure, rattle-free fitment
• Standard 2 mm pilot sampling hole, drillable to 5 mm per system design calculations
• Accepts 6 mm, 8 mm, 10 mm, and 1/2" capillary tube sizes to suit regional requirements
• Snap-fit fascia conceals sampling hole; removable for cleaning; RoHS/REACH compliant

VESDA by Honeywell (formerly Xtralis) flush mount sampling points provide an aesthetic alternative to conical sampling points in drop-ceiling installations. The VSP-877 is compatible with all Xtralis aspirating smoke detectors and is commonly specified in open-plan offices, server rooms, and any area where ceiling tile access from above is restricted. Dimensions: 92 x 54 mm (3.7" x 2.13").

Verify panel/device family compatibility before ordering.
