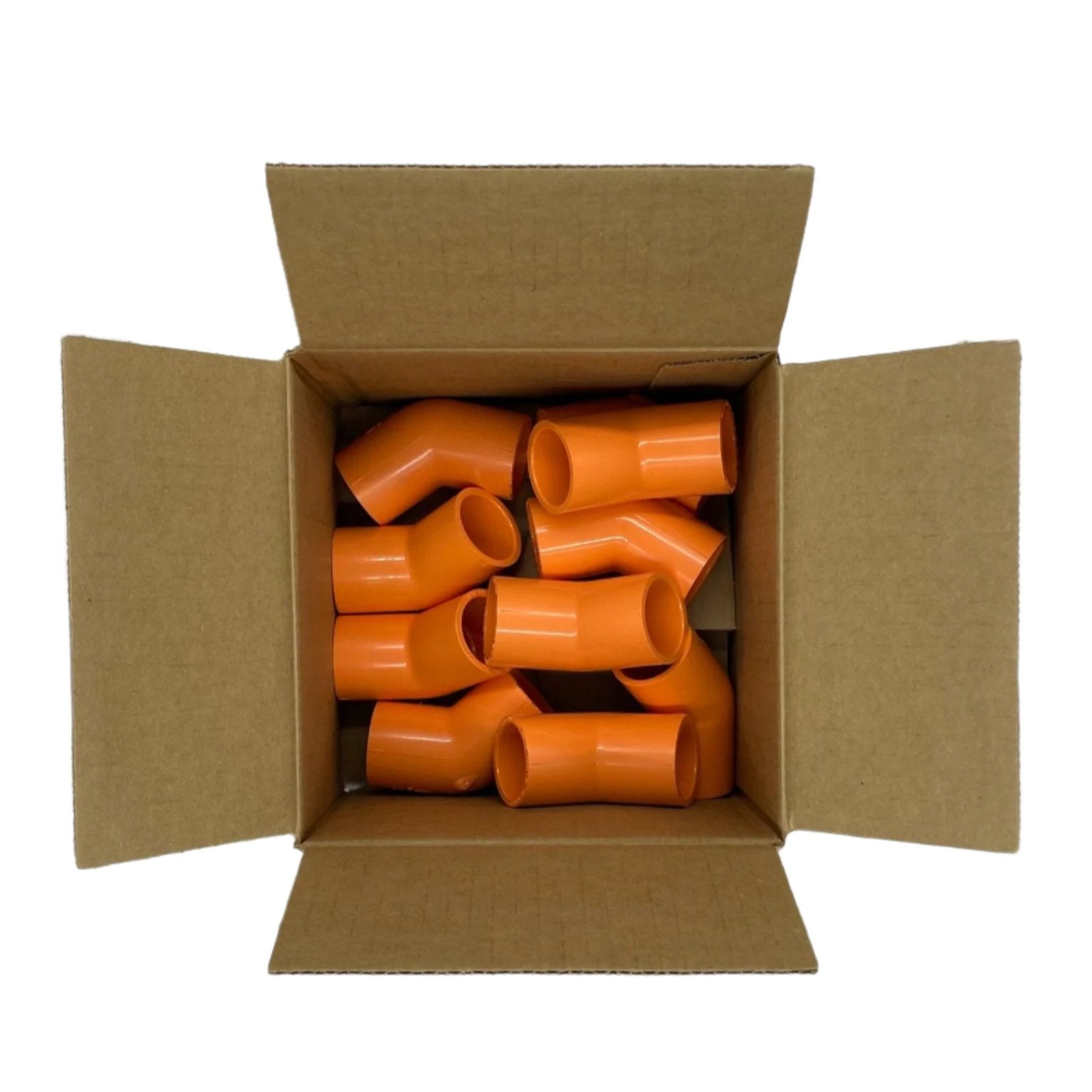

Vesda VP-ELB-45 45-degree elbow fitting, 3/4", 10 per box for VESDA aspirating smoke detection pipe networks.

Compliance

• UL 94 flammability rating (V-O flame retardant)
• UL 1887 listed for use in plenum-rated areas
• ULC smoke and flame ratings

Key features

• CPVC thermoplastic with 0°F to 200°F operating temperature range
• Smooth interior walls for unobstructed airflow through the sampling network
• Solvent cement joining process; no special tooling required for field assembly
• Lightweight construction suited for ceiling plenum and above-tile installations

VESDA by Honeywell (formerly Xtralis) 45-degree elbows are used to route 3/4" sampling pipe at a gentle angle change, reducing pressure drop in the network compared to a 90-degree elbow. The fitting is a standard component when routing pipe around structural obstructions in data center ceiling plenums, raised floor systems, and warehouse storage environments covered by VESDA aspirating smoke detection.

Verify panel/device family compatibility before ordering.
