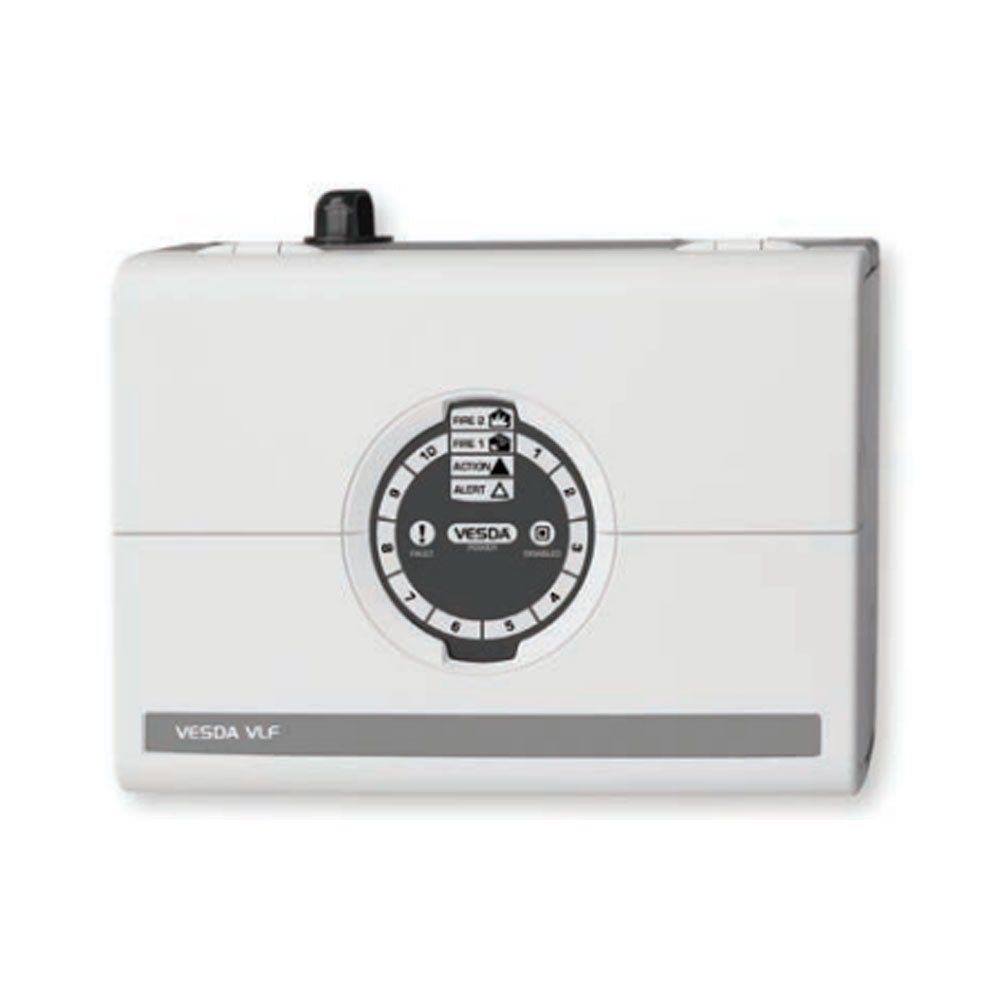

Vesda VLF-500-00-UL LaserFOCUS aspirating smoke detector, single-zone, UL listed, with 500 m² (5,400 ft²) coverage area.

Compliance

• UL 268A listed (aspirating smoke detection)
• ULC-S529 listed
• FM Approved
• NFPA 72 compliant

Key features

• Laser-based detection chamber delivers very early warning sensitivity from 0.05 to 4.0 %obs/m
• Coverage up to 500 m² (5,400 ft²) per single-zone detector
• Built-in aspirator with absolute airflow monitoring across the sampling pipe network
• Four programmable alarm thresholds: Alert, Action, Fire 1, Fire 2
• Configurable via VSC (VESDA System Configurator) software for sensitivity, day/night thresholds, and time delays
• Onboard relay outputs for alarm and fault, integrates with conventional and addressable fire alarm panels
• Removable filter cartridge and tool-less serviceable design

VESDA LaserFOCUS by Honeywell (formerly Xtralis) is the compact entry point of the VESDA aspirating smoke detection family, engineered for small-to-medium protected areas. The VLF-500 is specified in server rooms, telecommunications rooms, switch rooms, retail back-of-house, clean rooms, and heritage spaces where very early smoke detection is required but the protected area does not justify a higher-capacity VEP or VEU detector.

Verify panel/device family compatibility before ordering.
