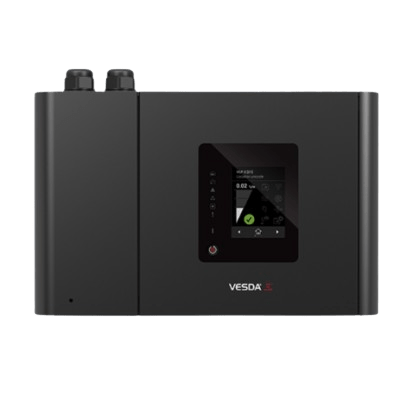

Vesda VEP-A10-P-UL VESDA-E aspirating smoke detector, single-pipe, programmer module, UL listed, with up to 800 m² (8,600 ft²) coverage area.

Compliance

• UL 268A listed (aspirating smoke detection)
• ULC-S529 listed
• FM Approved
• NFPA 72 compliant

Key features

• Flair detection technology with absolute calibrated sensitivity from 0.005 to 20 %obs/m
• Single-pipe configuration supports up to 800 m² (8,600 ft²) coverage area
• Programmer (-P) module variant: onboard display and configuration controls for standalone setup
• Up to 120 sampling holes per detector for high-density coverage
• Absolute airflow monitoring with ultrasonic flow sensor across each pipe inlet
• Four programmable alarm thresholds: Alert, Action, Fire 1, Fire 2
• StaX-style stacking enclosure for fast field installation and serviceability
• Integrates with VESDAnet, Modbus, BACnet, and HLI gateways for fire alarm panel and BMS connectivity

VESDA-E VEP by Honeywell (formerly Xtralis) is the mid-tier aspirating smoke detector of the VESDA-E platform, engineered for medium-to-large protected areas where very early warning is critical. The VEP-A10-P-UL is specified in data centers, server rooms, telecommunications facilities, clean rooms, museums, archives, and high-value storage where conventional spot detection cannot meet the required detection sensitivity or response time.

Verify panel/device family compatibility before ordering.
