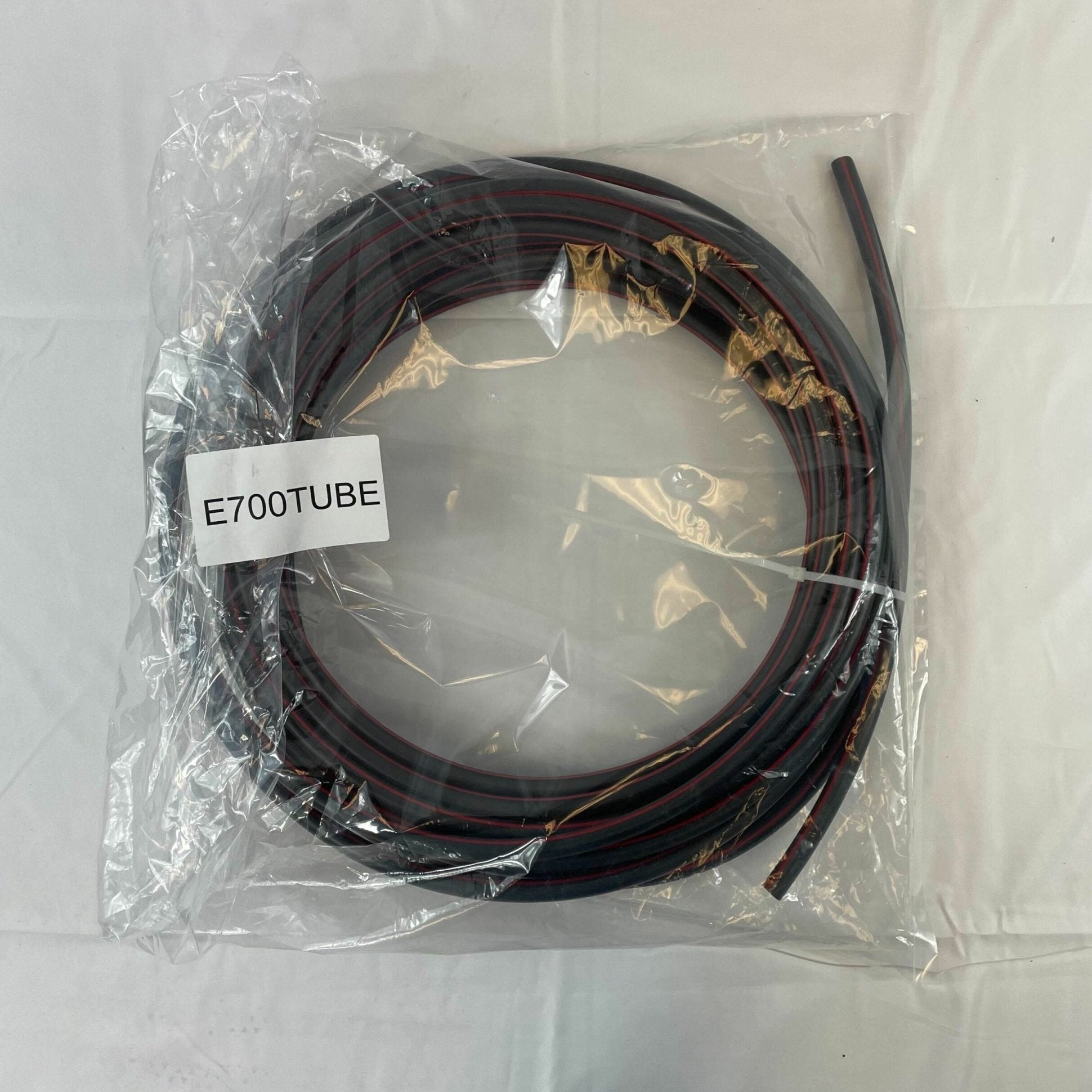

Vesda E700-TUBE capillary tube, 3/8" internal diameter, for VESDA aspirating smoke detection concealed sampling installations.

Compliance

• NFPA standards (pre-labeled in accordance with NFPA air sampling requirements)
• UL 94 flammability (V-O flame retardant)
• UL 1887 listed for use in plenum-rated areas
• ULC smoke and flame ratings

Key features

• 3/8" internal diameter CPVC capillary tube designed for concealed above-ceiling and in-cabinet sampling
• UL 1887 listed for plenum-rated areas, covering installations within ceiling void spaces
• Part of the integrated VESDA Pipe and Fittings system; simplifies specifier and installer selection
• Lightweight construction assembled in the field with inexpensive solvent cement tools

VESDA by Honeywell (formerly Xtralis) capillary tubing extends sampling coverage beyond the main pipe network into tight concealed spaces. E700-TUBE is used in concealed above-ceiling configurations, within equipment cabinets, and in raised-floor environments where a full-diameter pipe run is impractical. The E700-SP miniature sampling point connects to the capillary tube to place the sampling hole at the detection target location.

Verify panel/device family compatibility before ordering.
