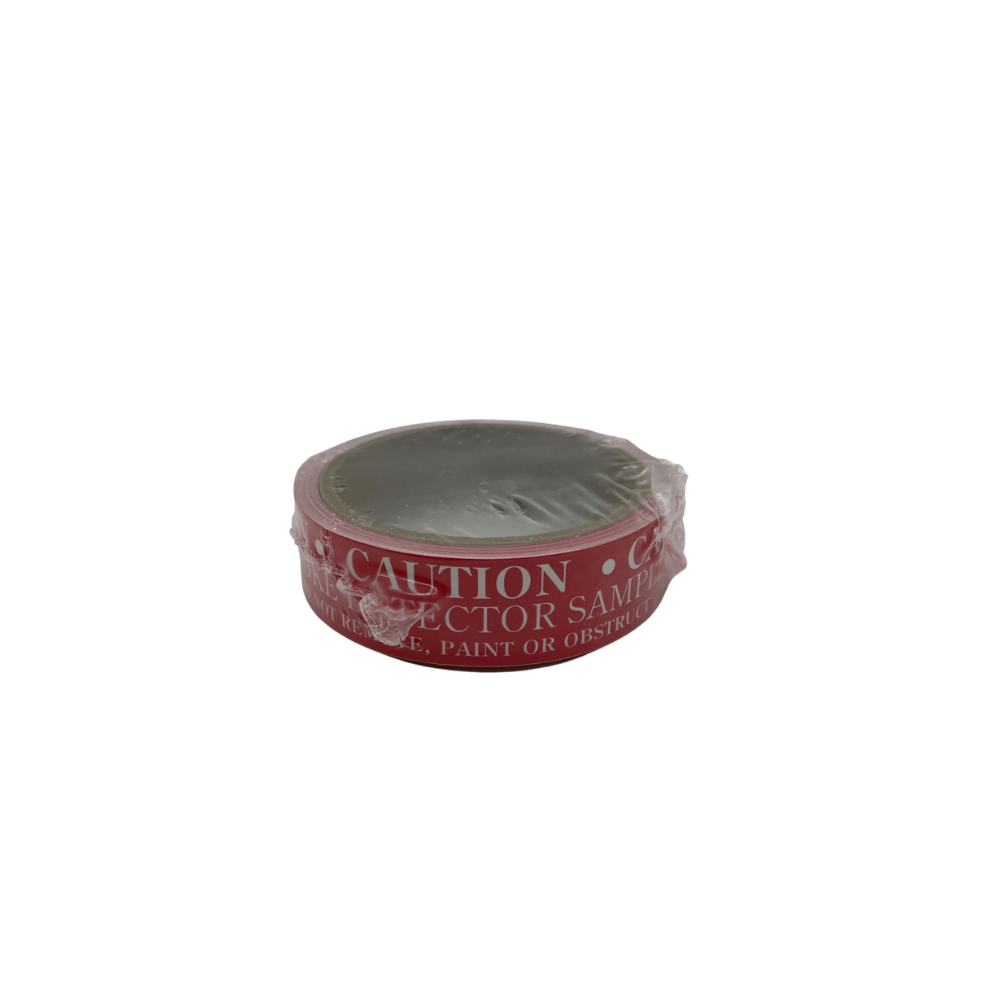

Vesda E700-SP-DCL-PIPE discreet concealed label sampling point with integrated pipe stub for VESDA aspirating smoke detection networks.

Compliance

• UL 94 flammability rating (V-O flame retardant)
• UL 1887 listed for use in plenum-rated areas
• ULC smoke and flame ratings
• Compliant with NFPA 72 air sampling requirements

Key features

• Discreet concealed label sampling point pre-assembled with a short pipe stub for direct connection to the main CPVC pipe network
• Eliminates the field assembly step required when joining a separate sampling point to a capillary tube
• Low-profile label preserves ceiling aesthetics in finished spaces
• Pilot sampling hole sized per VESDA system design calculations
• Compatible with VESDA VES, VEP, VEU, VEA, VLF, and VLI detector families
• Lightweight thermoplastic body installs flush in standard suspended ceiling tiles

VESDA by Honeywell (formerly Xtralis) discreet sampling points are part of the integrated VESDA Pipe and Fittings system. The E700-SP-DCL-PIPE variant ships with the pipe stub pre-bonded to the sampling point body, accelerating installation in projects where many concealed sampling locations must be deployed to a consistent standard. Commonly specified in data centers, server rooms, museums, archives, hotel atria, and heritage buildings where exposed sampling hardware is not acceptable.

Verify panel/device family compatibility before ordering.
