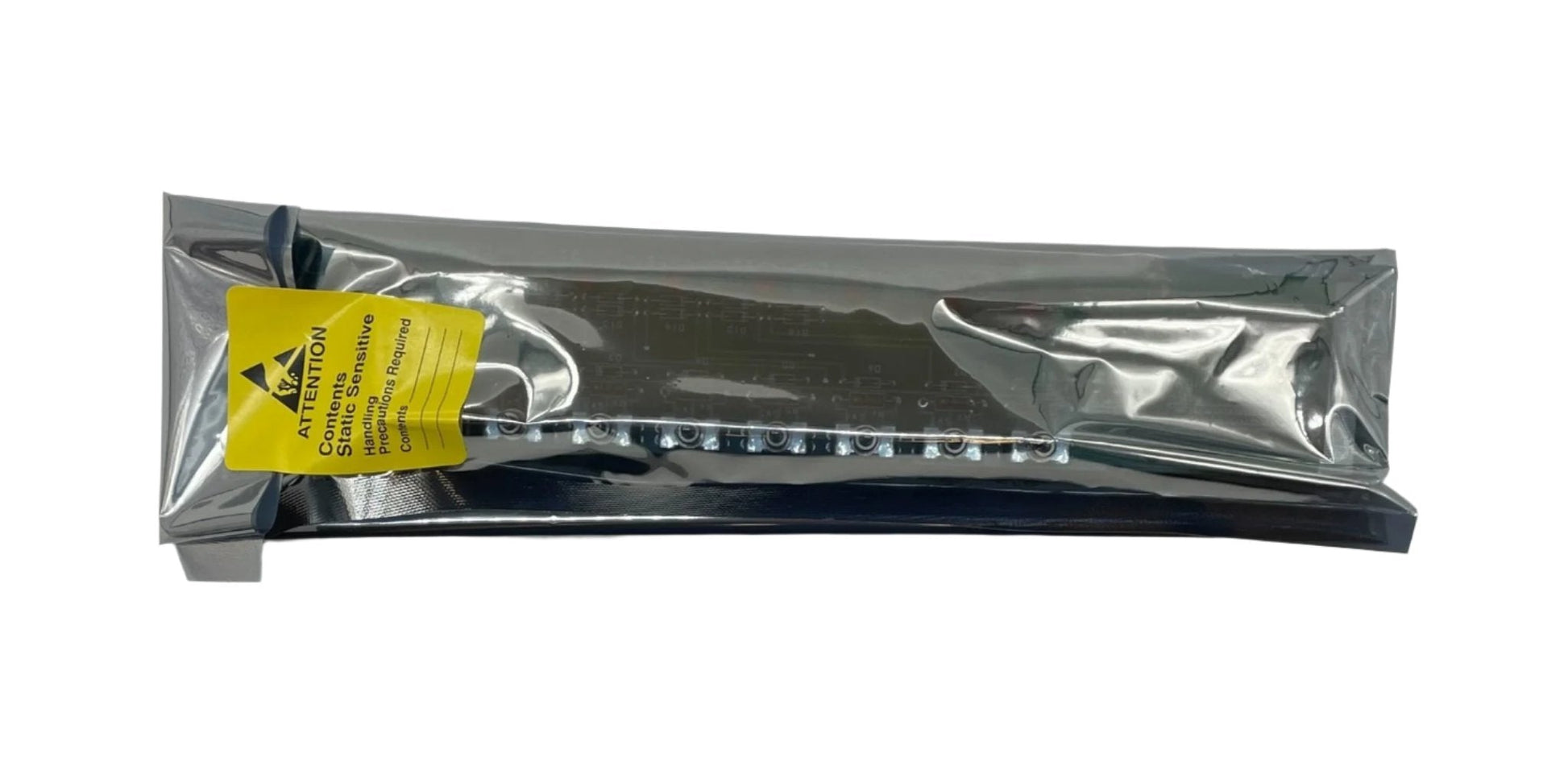

Simplex 562-747 chassis interconnect board for the Simplex 4100 fire alarm control panel.

Key features

• Chassis interconnect PCB for the Simplex 4100 panel family
• Variant motherboard configuration for specific 4100-series revisions
• Provides chassis-level bus connections for expansion cards and field wiring terminals
• Replacement PCB for legacy 4100 panel service and repair

Simplex, a Johnson Controls brand, manufactures fire alarm control panels including the 4100ES, 4010ES, 4007ES, and 4006 intelligent addressable series. Chassis interconnect boards in the 562 series form the structural backbone of the 4100 platform in commercial and institutional fire alarm installations.

Verify panel/device family compatibility before ordering.
