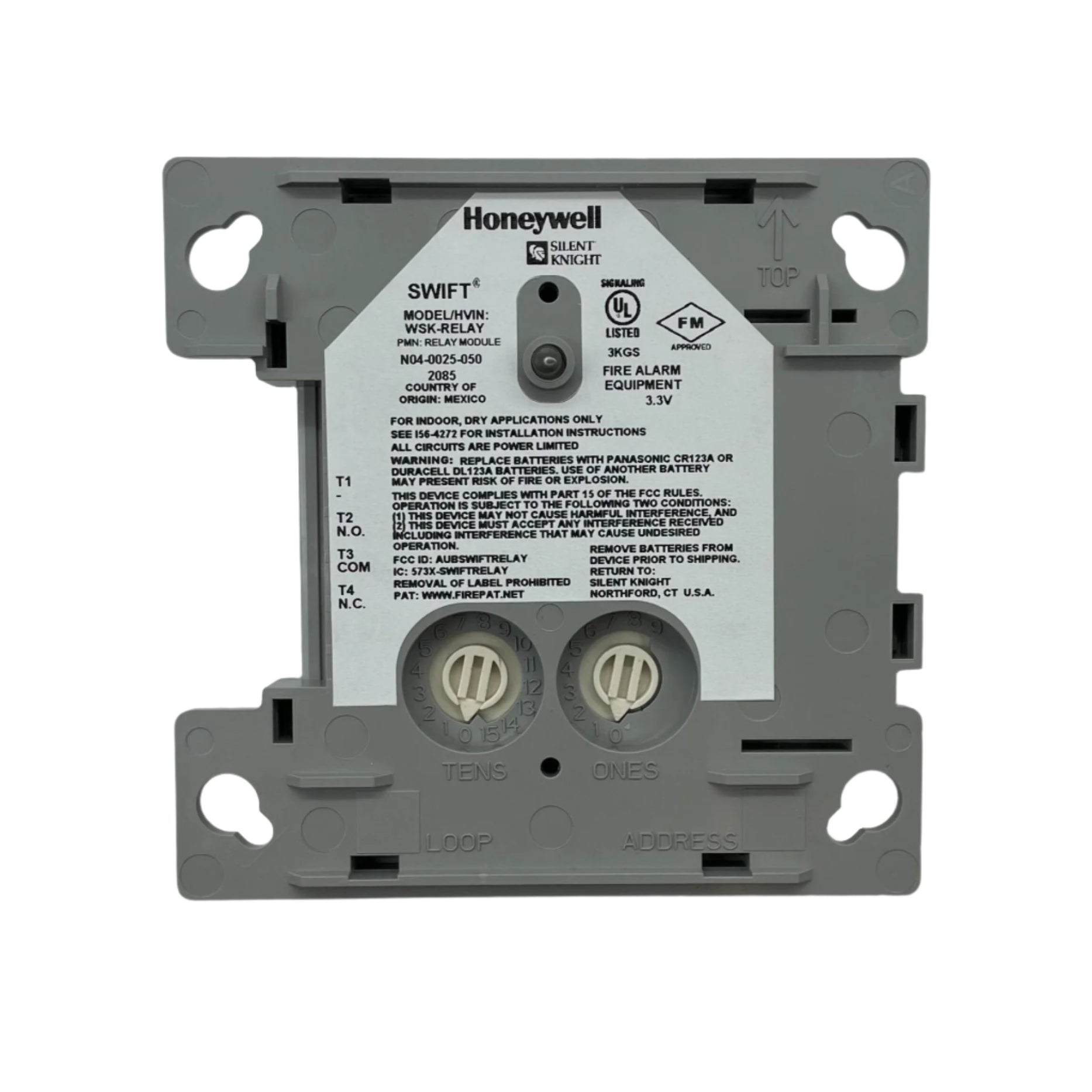

Silent Knight WSK-RELAY Wireless Addressable Relay Module.

Compliance

• UL Listed
• NFPA 72

Key features

• Wireless relay module operating on the Honeywell SWIFT mesh radio network
• Provides a dry-contact relay output controlled by commands from the SK panel via the SWIFT gateway
• Eliminates relay output wiring runs to remote controlled loads in retrofit applications
• 10% to 93% non-condensing humidity tolerance
• Interfaces to the SK SLC through a WSK-WGI wireless gateway

The WSK-RELAY is a wireless addressable relay module in the Silent Knight SWIFT platform (a Honeywell brand). Panel commands from the 5820XL or 6500 series FACP pass through the SK SLC to the SWIFT gateway, which then wirelessly transmits the relay activation command to the WSK-RELAY. This approach allows HVAC shutdown, door holder release, or elevator recall functions to be added at remote locations without pulling additional control wiring. Confirm WSK-WGI gateway capacity and relay output specifications before ordering.

Verify panel/device family compatibility before ordering.
