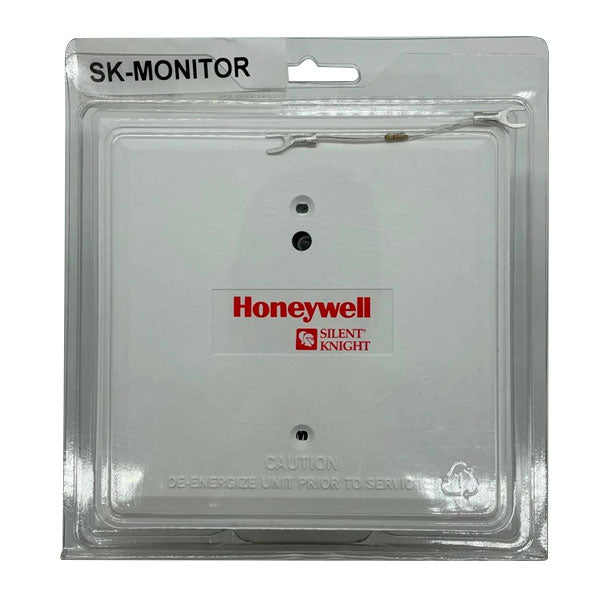

Silent Knight SK-MONITOR Addressable Monitor Module.

Compliance

• UL Listed

Key features

• Monitors one Class B (Style B) or Class A (Style D) initiating circuit on the SK SLC
• Standby current 400 μA max at 24 VDC, minimizing loop loading
• Operating temperature range 32°F to 120°F (0°C to 49°C)
• 10% to 93% non-condensing humidity tolerance
• Compact form factor: 6.3 oz (196 g), surface or flush mounting

The SK-MONITOR provides addressable input supervision for conventional detection zones within a Silent Knight 5820XL or 6500 series fire alarm control panel (a Honeywell brand). It allows legacy or conventional initiating devices to be connected to the SK protocol SLC loop, extending addressable system coverage without replacing field devices. Supports up to 792 addressable points per SLC loop.

Verify panel/device family compatibility before ordering.
