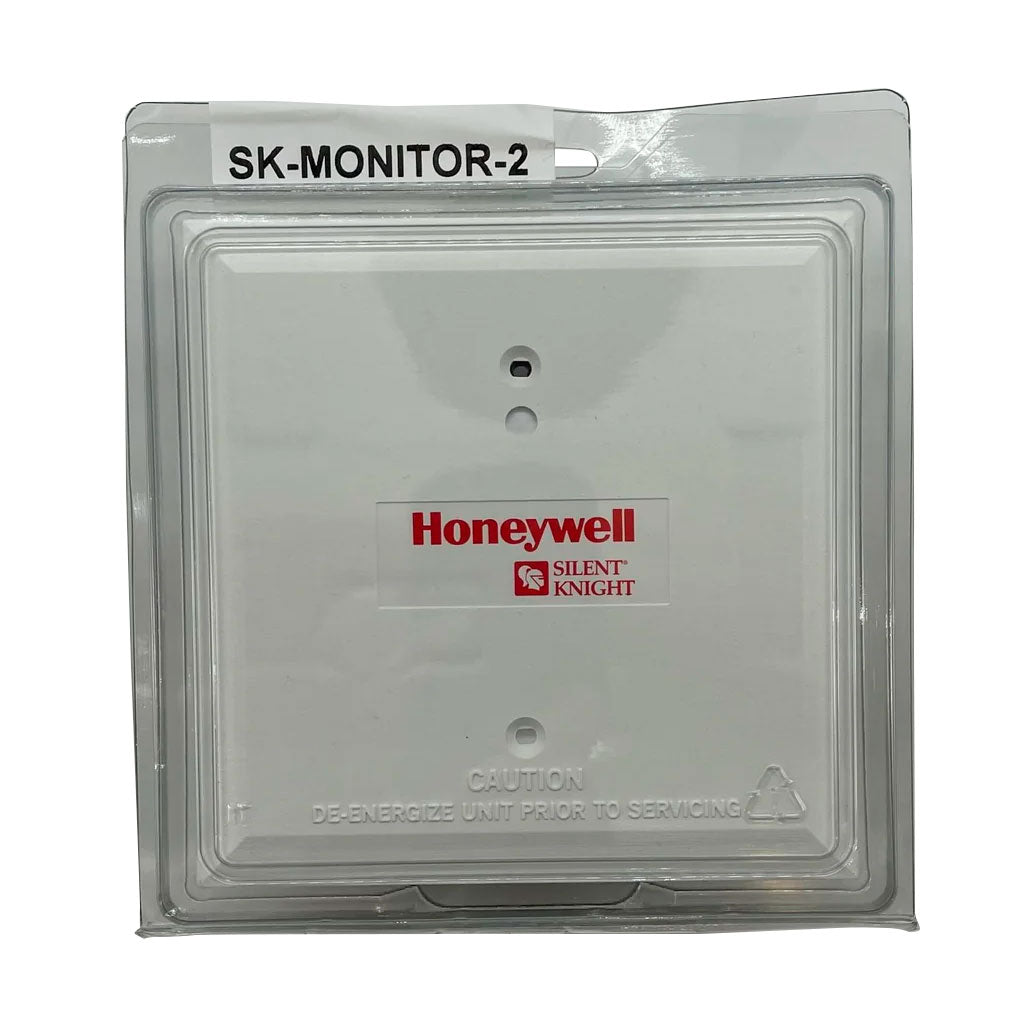

Silent Knight SK-MONITOR-2 Addressable Dual-Input Monitor Module.

Compliance

• UL Listed
• NFPA 72

Key features

• Monitors two Class B (Style B) initiating circuits on one SK SLC address point
• Alarm current 750 μA max at 24 VDC for two-input operation
• Operating temperature 32°F to 120°F (0°C to 49°C), 10% to 93% humidity
• Weight 6.3 oz (196 g); supports conventional detector zones on the SK addressable loop
• Doubles the input density per SLC address compared to the single-input SK-MONITOR

The SK-MONITOR-2 is an addressable dual-input monitor module for the Silent Knight SK protocol SLC. It allows two independent conventional initiating circuit zones to be supervised from a single SLC address point, which is useful when conserving SLC address capacity in large systems. It integrates with 5820XL and 6500 series fire alarm control panels (a Honeywell brand). Reference the SK-MONITOR-2 installation guide to confirm NFPA 72 wiring style support and zone input configuration options.

Verify panel/device family compatibility before ordering.
