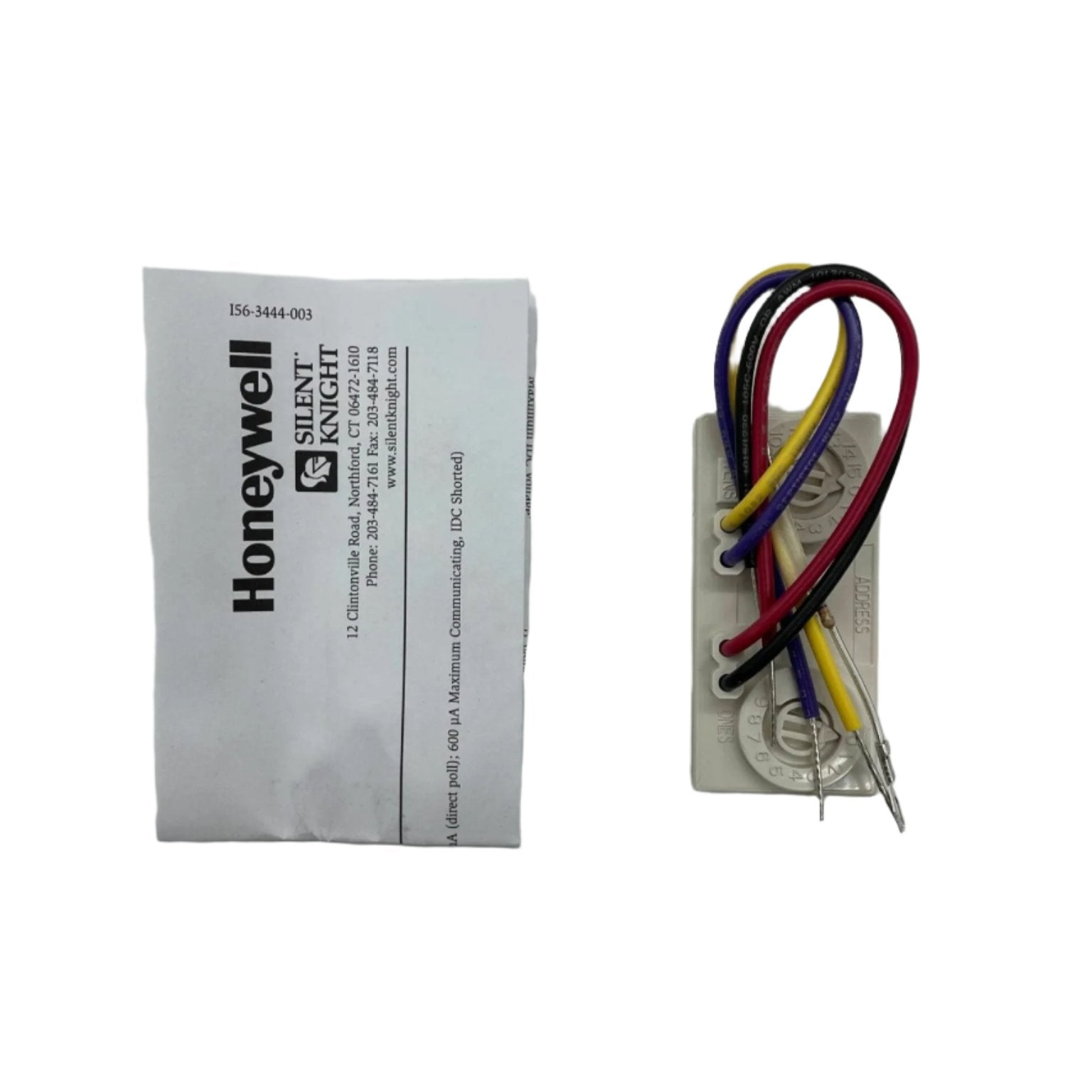

Silent Knight SK-MINIMON Addressable Mini Monitor Module.

Compliance

• UL Listed
• CSFM Listed
• FM Approved

Key features

• Compact monitor module: 2.75" W x 1.3" H x 0.5" D, 1.2 oz (37 g)
• Alarm current 350 μA for low loop loading
• Operating temperature 32°F to 120°F (0°C to 49°C)
• Designed for space-constrained installation locations
• Fits within standard junction boxes where full-size modules cannot

The SK-MINIMON is a miniaturized addressable monitor module for the Silent Knight SK protocol SLC. Its compact footprint makes it suitable for monitoring individual initiating devices or small zones in retrofit applications where a standard-size module would not fit. Compatible with the 5820XL and 6500 series fire alarm control panels (a Honeywell brand).

Verify panel/device family compatibility before ordering.
