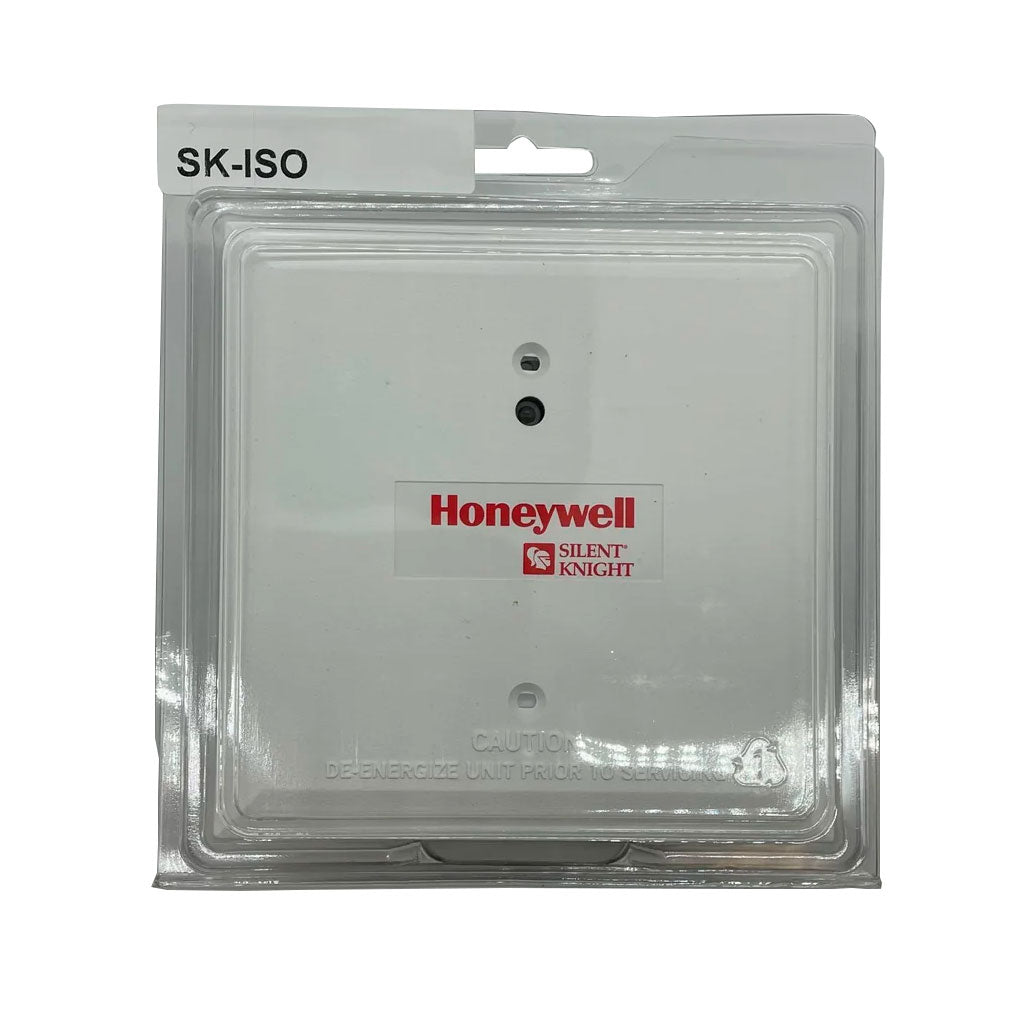

Silent Knight SK-ISO Addressable Short-Circuit Isolator Module.

Compliance

• CSFM Listed
• FM Approved

Key features

• Isolates short-circuit faults on the SK SLC to limit the faulted segment to one zone
• Standby current 450 μA max when not isolating; relay activates on fault detection
• Slim form factor: 4.5" H x 4" W x 0.25" D (11.4 x 10.2 x 0.6 cm), 6.3 oz (196 g)
• Operating temperature 32°F to 120°F (0°C to 49°C), 10% to 93% humidity
• Installed between addressable device groups to contain wiring faults per NFPA 72 Class A requirements

The SK-ISO is an addressable short-circuit isolator module for the Silent Knight SK protocol SLC. When a wiring short occurs on the loop, the SK-ISO disconnects the faulted segment while allowing the remainder of the SLC to continue operating — a requirement for Class A (Style 6 or 7) wiring topology under NFPA 72. It is used with 5820XL and 6500 series fire alarm control panels (a Honeywell brand). NFPA 72 recommends placing isolators before and after every group of up to 25 devices on a Class A loop.

Verify panel/device family compatibility before ordering.
