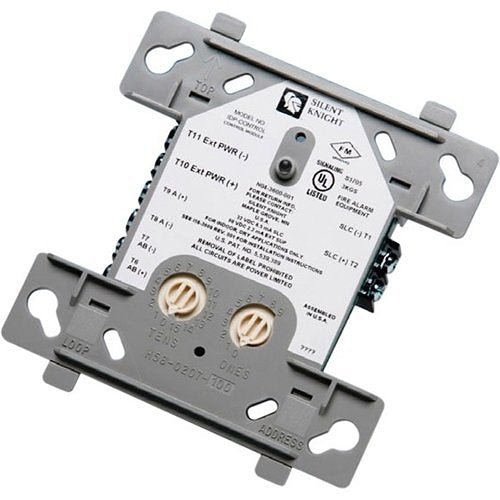

Silent Knight SK-CONTROL Addressable Control Module.

Compliance

• UL Listed

Key features

• Provides one supervised, power-limited output circuit on the SK SLC
• Standby current 1.7 mA; alarm current 7 mA per module
• Operating temperature 32°F to 120°F (0°C to 49°C), 10% to 93% humidity
• Dimensions: 4.5" H x 4" W x 1.3" D (11.4 cm x 10.2 cm x 3.3 cm)
• Controls notification appliances or auxiliary devices from the addressable loop

The SK-CONTROL is an addressable output control module for Silent Knight 5820XL and 6500 series fire alarm control panels (a Honeywell brand). Installed on the SK protocol SLC, it allows the panel to directly activate notification appliances, door holders, or other supervised loads at addressable locations throughout the system. Supports systems scaled up to 792 addressable points.

Verify panel/device family compatibility before ordering.
