Silent Knight 5860 Remote LCD Annunciator.

Compliance

• UL Listed
• NFPA 72
• CSFM Approved
• MEA 429-92-E
• FM Approved

Key features

• 80-character backlit LCD (4 lines x 20 characters); accepts fire fighter's key or user codes
• Larger keypad buttons for system reset and silence; tactile and audible feedback
• Five status LEDs: alarm, supervisory, trouble, silence, AC power; on-board piezo sounder
• RS-485 SBUS interface; up to 8 units per system, wiring up to 6,000 ft from the FACP
• Standby 20 mA max, alarm 25 mA at 24 VDC; available in red or light gray

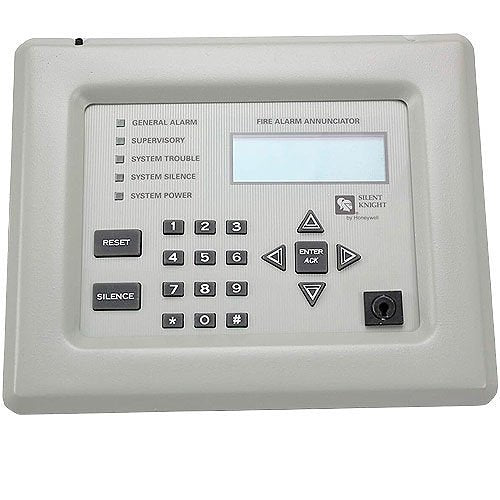

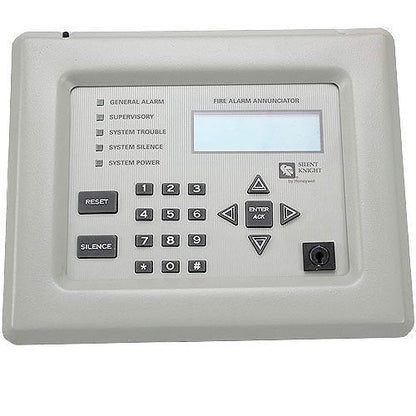

The Silent Knight 5860 is a full-featured remote LCD annunciator for 5820XL and 6500 series fire alarm control panels (a Honeywell brand). Its display and key interface are identical to the panel's built-in annunciator, allowing fire fighters and operators to perform system reset, silence, and event review from a remote location. MEA 429-92-E and CSFM listings cover New York and California installations. Up to eight 5860 units can operate simultaneously per system. The 5860R variant has a red housing; the standard 5860 is gray.

Verify panel/device family compatibility before ordering.
