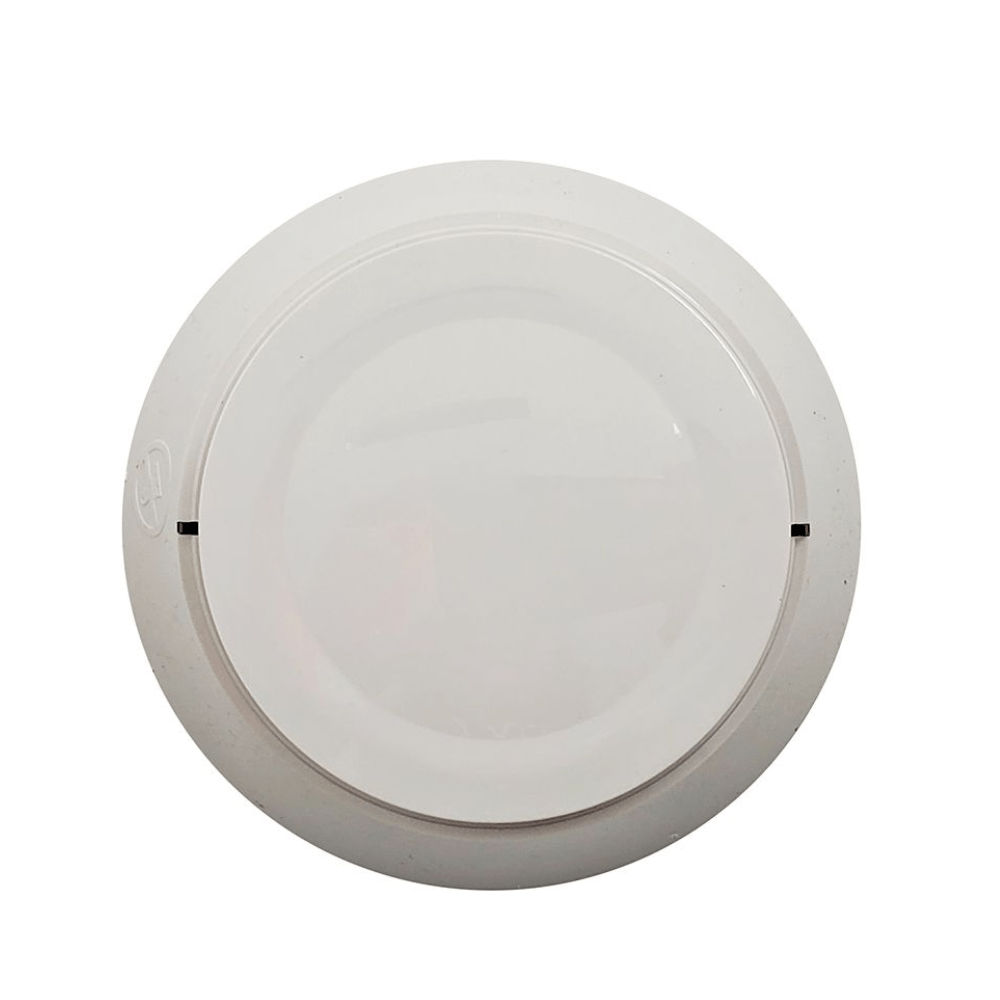

Mircom MIX-2351AP addressable photoelectric smoke detector for FX-2000 and FX-3500 series fire alarm control panels.

Compliance

• UL 268
• NFPA 72
• ULC Listed

Key features

• Addressable protocol compatible with Mircom FX-2000 and FX-3500 series panels using FlashScan-compatible communications
• Operating voltage: 15 to 32 VDC; alarm current: 2 mA at 24 VDC during active communication
• Operating temperature: 32°F to 122°F (0°C to 50°C); humidity: 10% to 93% RH non-condensing
• Air velocity tolerance: 0 to 4,000 ft./min. for installation in spaces with active HVAC airflow
• Weight: 3.4 oz. (95 g) for standard ceiling rose or detector base mounting

Mircom is a Canadian fire alarm manufacturer whose FX-2000 and FX-3500 series addressable panels use a FlashScan-compatible communication protocol. The MIX-2351AP is an addressable photoelectric smoke detector designed for use on Mircom SLC loops and provides point-level identification for alarm and maintenance reporting. The ULC listing covers Canadian market installations while the UL 268 and NFPA 72 compliance supports US projects. The detector mounts on standard Mircom-compatible detector bases and must be addressed before installation. Confirm SLC loop capacity and base compatibility with the FX-Series panel installation manual before deploying.

Verify panel/device family compatibility before ordering.
