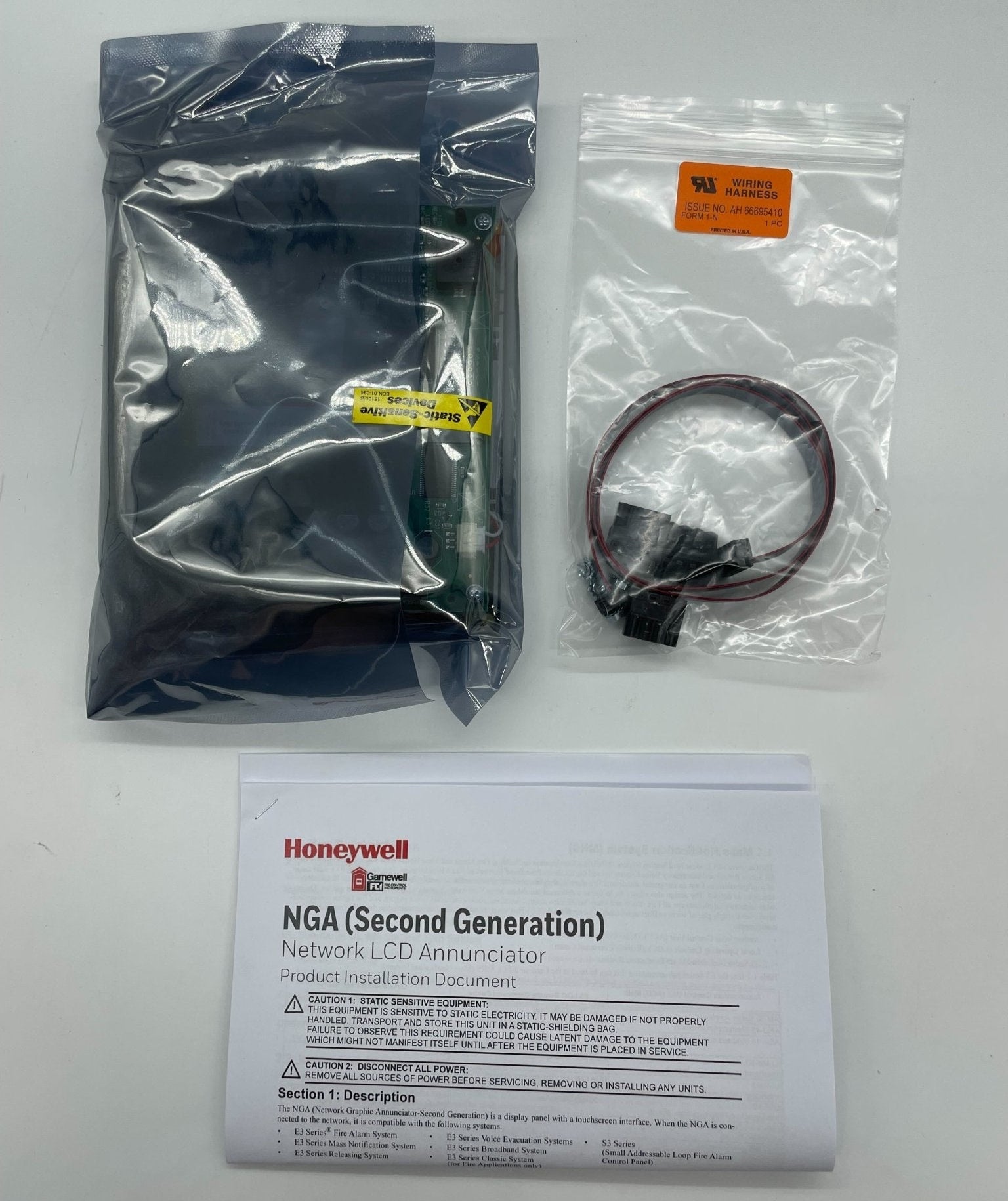

The Gamewell-FCI NGA, Touchscreen graphic annunciator for E3 Broadband. Up to 512 user-defined messages (77 chars each), custom font and color per message.

Touchscreen graphic annunciator for E3 Broadband

The NGA (Network Graphic Annunciator, manufacturer P/N 1100-0505) is the touchscreen-based annunciator for E3 Broadband systems. It carries a library of up to 512 user-defined messages, each up to 77 characters, with programmable font and color per message, that the panel triggers on alarm, supervisory, trouble, or operator-initiated events. The graphical surface lets the system designer build a visual layout matching the facility plan.

When NGA fits the build

Three common applications: (1) lobby information panels where the touchscreen doubles as a public-facing system status display, (2) fire command rooms needing a graphic overlay of the building floor plan with active alarm zones highlighted, (3) multi-tenant or campus installations where each location wants its own customized message set. The NGA mounts in the AA1 cabinet (E3BB-BAA1) for compact remote installs.

NGA vs LCD-E3 vs LCD-SLP

The NGA is graphic and touchscreen-based, optimized for custom message display. The LCD-E3 is a keypad-driven character display optimized for system programming and event review. The LCD-SLP is the S3-style touchscreen used both as primary panel display and as an alternative E3 annunciator. Pick by interaction model: NGA for graphical / custom messages, LCD-E3 for text-based programming, LCD-SLP for touch programming.

Listings and approvals

UL Listed S1869 under UL 864 9th Edition and UL 2572. FM Approved 3025415. MEA FDNY 6175 231-06-2E. CSFM 7165-1703:125. ISO 9001 manufacturing.
