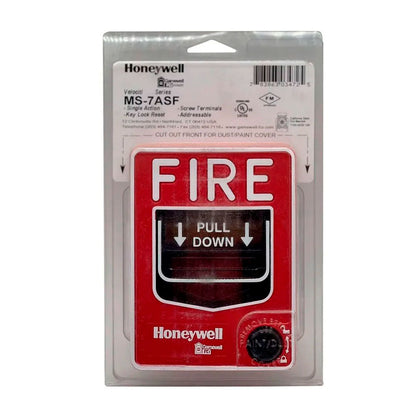

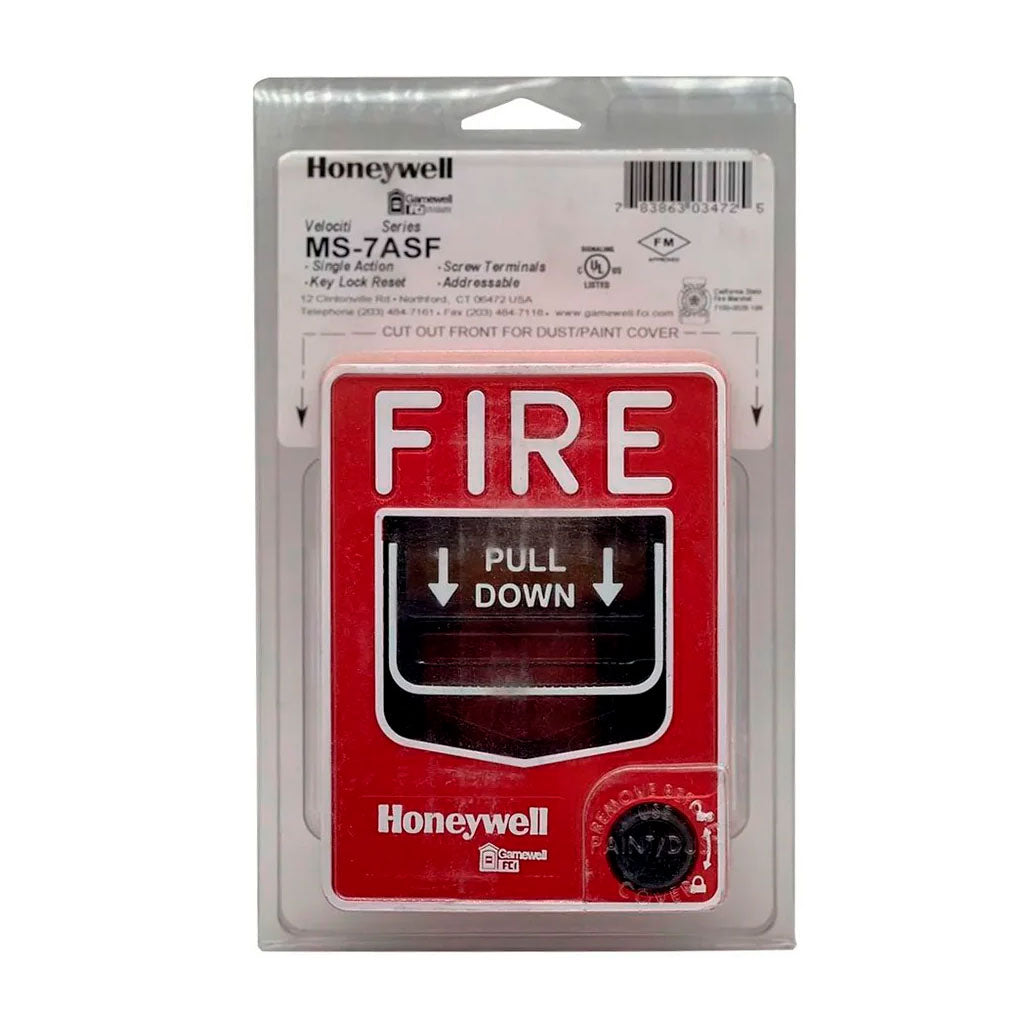

The Gamewell-FCI MS-7ASF is a Velociti® Series addressable single-action manual pull station. Connects to the SLC of Gamewell-FCI analog addressable control panels, each station registers its assigned address on activation, so the panel reports exact pull-station location rather than a zone block. Screw terminals.

The door carries a bi-color LED: green flash on every poll cycle confirms the station is communicating, red steady on activation confirms the panel received the alarm. Operating instructions and Braille engraved in the handle. ADA-compliant, 5-lb maximum pull force. Cat 60 key-alike with all Gamewell-FCI pull stations and control panels.

Single-action plus addressable, when this combination fits

Single-action stations let users activate with a direct handle pull, no cover lift required. This is code-acceptable in lower-traffic occupancies and back-of-house spaces. For schools, public lobbies, and high-traffic areas where the AHJ requires double-action, specify the MS-7AF instead. Both share the same Velociti addressing behavior.

Compatible panels: E3 Series, S3 Series, GWF-7075, IdentiFlex 602

Connects to Velociti analog addressable SLCs. Works on E3 Series, S3 Series, 7100 Series, 7075 Series, and IdentiFlex 602 (with Velociti / CLIP loop card). LED behavior is red-only on non-Velociti panels.

Mounting

Surface or semi-flush on a standard double-gang or 4-inch square electrical box. Optional BG12TR trim ring for semi-flush. SB-10 surface backbox. NY-PLATE for NYC compliance.

Listings and approvals

UL Listed S2465 under UL 864 9th Edition. FM Approved 3023594. CSFM 7160-1703:0119 / 0170 / 0109. MEA FDNY 67-02-E Vol. VII. ISO 9001 certified manufacturing.
