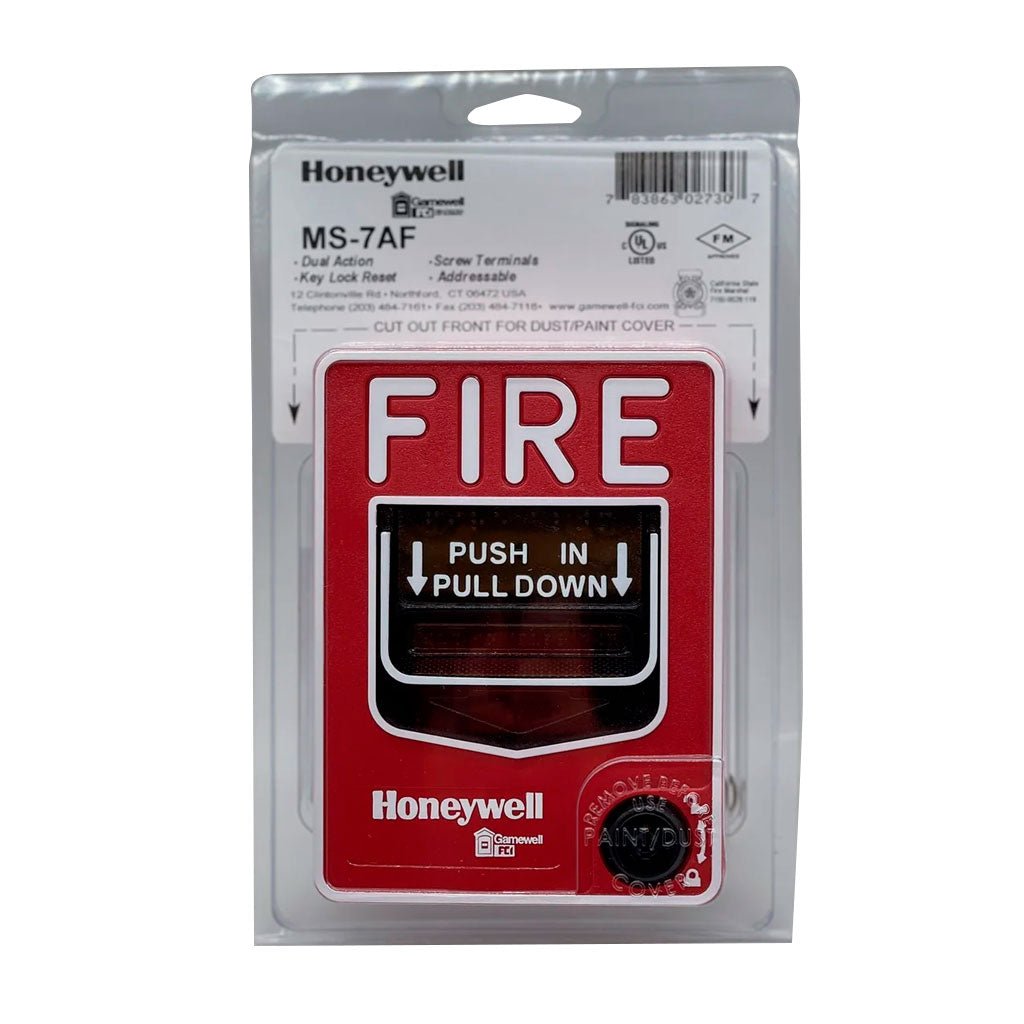

The Gamewell-FCI MS-7AF is a Velociti® Series addressable double-action manual pull station. It connects directly to the SLC of Gamewell-FCI analog addressable control panels, each station registers its assigned address on activation, so the panel reports exact pull-station location rather than a zone block. Screw terminals.

The door carries a bi-color LED: green flash on every poll cycle confirms the station is communicating, red steady on activation confirms the panel received the alarm. Operating instructions and Braille engraved in the handle. ADA-compliant, 5-lb maximum pull force. Cat 60 key-alike with all Gamewell-FCI pull stations and control panels.

Double-action plus addressable, when this combination matters

Addressable stations are the default for E3 Series / S3 Series / IdentiFlex 602 installs, because point identification drastically shortens AHJ-driven response and post-event audits. The double-action lift-then-pull mechanism is mandated in many public-space codes (schools, lobbies, theatres). The MS-7AF is the SKU that satisfies both, for single-action addressable, use the MS-7ASF.

Compatible panels: E3 Series, S3 Series, GWF-7075, IdentiFlex 602

Connects to Velociti analog addressable SLCs. Works on E3 Series, S3 Series, 7100 Series, 7075 Series, and IdentiFlex 602 (with the Velociti / CLIP loop card). LED behavior is red-only on non-Velociti panels.

Mounting

Surface or semi-flush on a standard double-gang or 4-inch square electrical box. Optional BG12TR trim ring for semi-flush. SB-10 surface backbox. NY-PLATE for NYC compliance.

Listings and approvals

UL Listed S2465 under UL 864 9th Edition. FM Approved 3023594. CSFM 7160-1703:0119 / 0170 / 0109. MEA FDNY 67-02-E Vol. VII. ISO 9001 certified manufacturing.
