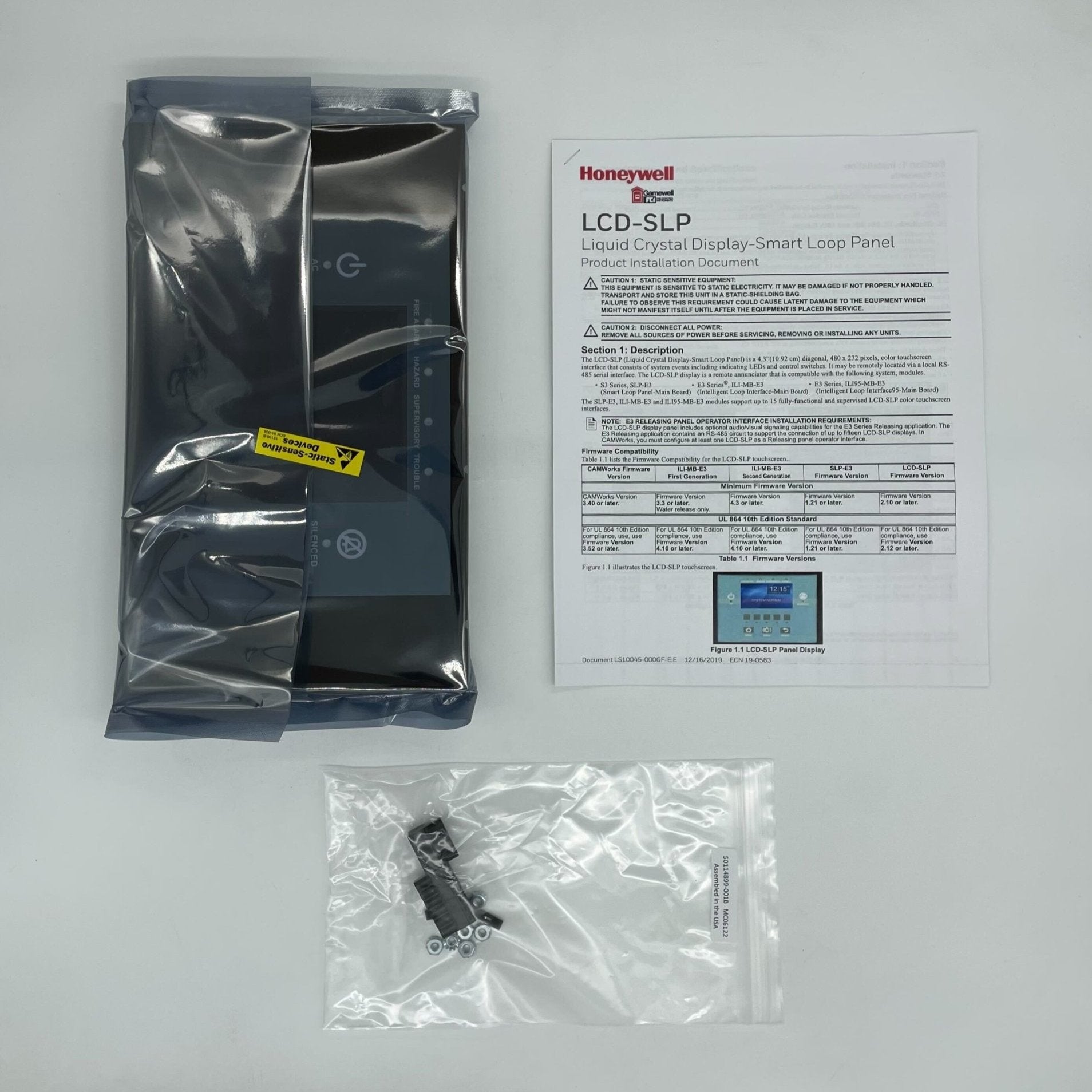

The Gamewell-FCI LCD-SLP is the standard 4.3-inch color touchscreen annunciator for the S3 Series Smart Loop Panel family. It mounts to the front of the SLP-RED or SLP-BLK enclosure and provides the primary user interface for fire alarm event acknowledgement, history review, system silence, and panel programming. Five programmable switches sit below the screen for fast access to common actions.

The display speaks ARCNET to the SLP main board. It shows the active alarm and trouble list, drives a 256-event history view, and lets credentialed technicians enter the two password-protected programming levels without external software. On networked installations, the LCD-SLP can be configured as the primary annunciator on its own node or as a remote display across the 625K baud ARCNET network.

What the LCD-SLP replaces or supplements

On a new install, the LCD-SLP ships as part of the SLP-RED or SLP-BLK panel configuration. As a standalone purchase it serves two purposes: a remote annunciator at the building entrance or fire command room, or a replacement display for a failed front-panel touchscreen. The LCD-E3 is the alternative annunciator for E3-Series-style touchscreen control, pick by panel family.

Compatible panels

S3 Series (SLP-RED, SLP-BLK), E3 Series via LCD-E3 variant, and 7100 Series within their respective annunciator support matrices.

Specs and listings

4.3-inch color touchscreen. Five programmable function switches. ARCNET network bus connection. Listed per 9021-60730 datasheet revision H as the standard display of the SLP-RED / SLP-BLK panels.
