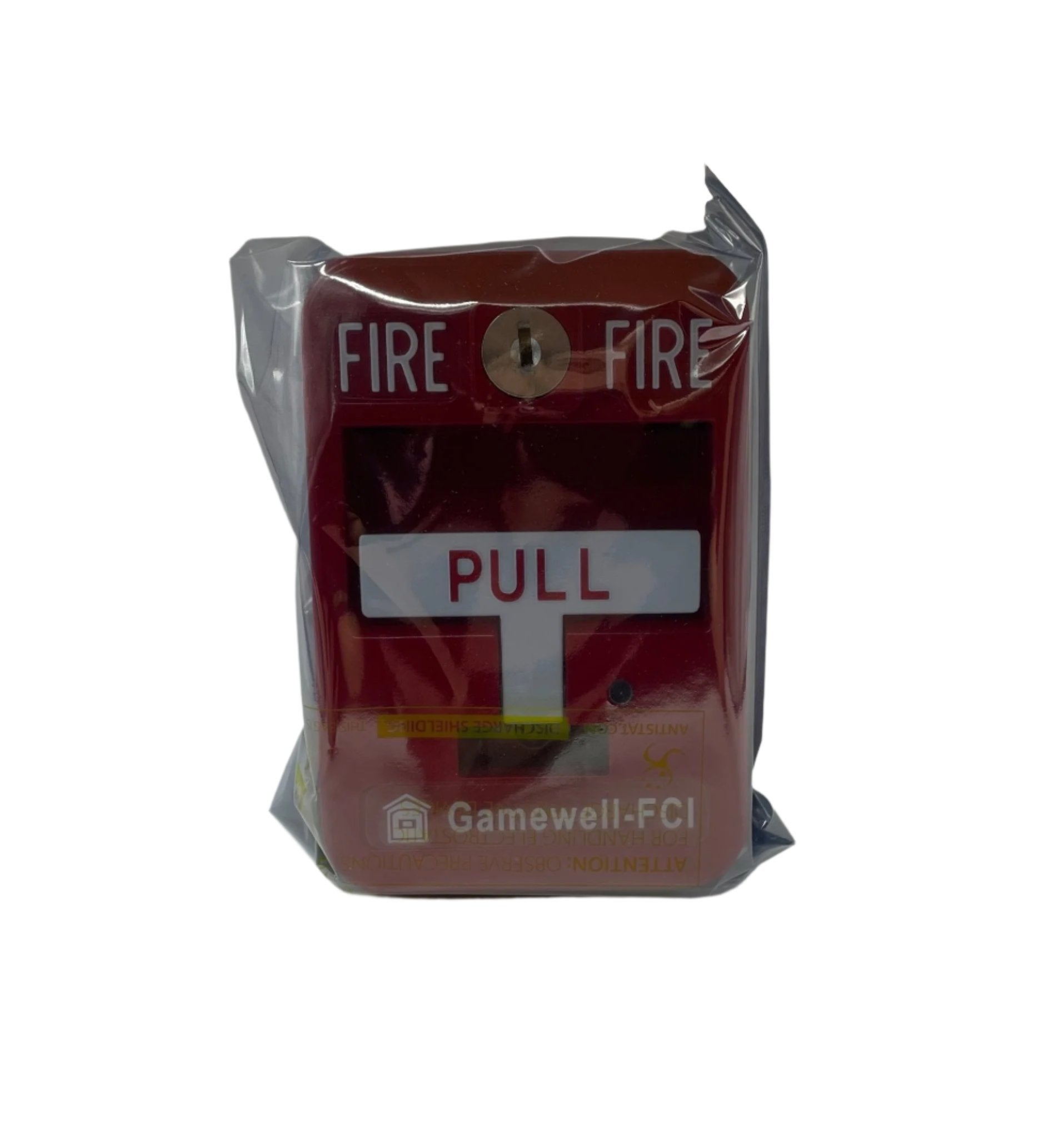

The Gamewell-FCI GWMS-95T (manufacturer P/N MS-95T) is the terminal-block variant of the 95-series die-cast aluminum addressable single-action pull station. The only difference from the wire-lead GWMS-95 is the connection method, the GWMS-95T ships with an internal terminal block instead of factory wire leads, which speeds field wiring on retrofit installs.

The rugged toggle switch design resists accidental alarms from vibration or shock, and the lever locks in the alarm position until manually reset with a key. UL Standard 38 and ADA AG Controls compliant (5-lb max pull force, 42-48 inch mounting height).

Terminal block versus wire leads, why this matters in retrofits

On a retrofit install with existing conduit and pulled conductors, the GWMS-95T saves time: land the wires directly on the terminal block, no need to strip-and-splice with the factory leads. On a new build with pulled wire still long enough to splice, either variant works equally well, the wire-lead GWMS-95 is the choice when the install workflow prefers wirenuts.

Compatible panels (legacy series)

600 Series IdentiFlex 602; E3 Series ILI95-E3; S3 Series SLC95-PM. Same panel compatibility as the GWMS-95, the 95 series predates Velociti and is designed for the older addressable loops on those specific panels.

Optional accessories

Double-action conversion P/N 30653. Key reset option P/N 30653-01. Combined key reset + double-action P/N 30653-02. Breakglass rod P/N 27060 (self-clearing). Backboxes P/N 28762 (surface), P/N 71961 (key-reset enlarged), gasket P/N 50397G, NYC backplate P/N 72198.

Listings and approvals

UL Listed S281 under UL 38 (manual pull stations). CSFM 7300-1703:0136.
