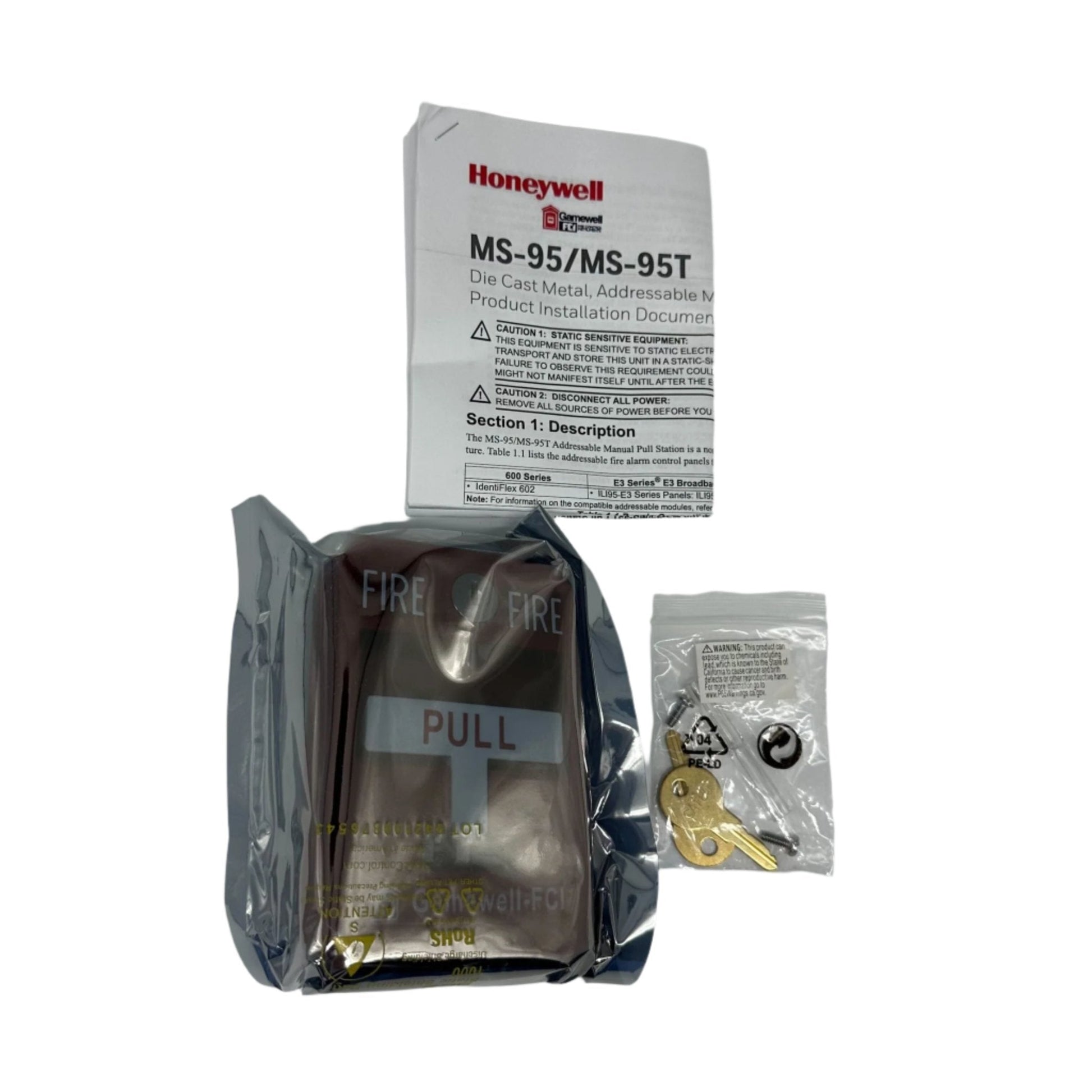

The Gamewell-FCI GWMS-95 (manufacturer P/N MS-95) is a die-cast aluminum addressable single-action manual pull station with a key-lock reset. The rugged toggle switch design resists accidental alarms from vibration or shock, and the lever locks in the alarm position until manually reset with a key.

Operation: press the lever marked PUSH inward, then pull the handle marked PULL downward until the handle locks. To reset, insert and turn the front-panel key, the cover unlocks and lowers, allowing the toggle to return to standby. The pull station meets UL Standard 38 and ADA AG Controls (5-lb max pull force, 42-48 inch mounting height).

Why aluminum and toggle, different design philosophy from MS-7

The 95 series is smaller and more rugged than the MS-7 Lexan family. The die-cast aluminum housing with toggle mechanism is sized for legacy panel systems (IdentiFlex 602, ILI95-E3, SLC95-PM) where the larger MS-7 form factor does not match existing ceiling spacing or aesthetic. Vibration tolerance is also higher, relevant in industrial or vehicle-adjacent installations.

Wire leads versus terminal block, pick your install workflow

The GWMS-95 ships with factory wire leads from the toggle contacts. For terminal-block connection (faster retrofit installs, fewer in-conduit splices), specify the GWMS-95T instead. Otherwise the two are identical.

Compatible panels (legacy series)

600 Series IdentiFlex 602; E3 Series ILI95-E3; S3 Series SLC95-PM. The 95-series predates Velociti, it is designed for the older addressable loops on those specific panels, not for general Velociti / CLIP SLC use.

Optional accessories

Double-action conversion P/N 30653. Key reset option P/N 30653-01. Combined key reset + double-action P/N 30653-02. Breakglass rod P/N 27060 (self-clearing). Backboxes P/N 28762 (surface), P/N 71961 (key-reset enlarged), gasket P/N 50397G, NYC backplate P/N 72198.

Listings and approvals

UL Listed S281 under UL 38 (manual pull stations). CSFM 7300-1703:0136.
