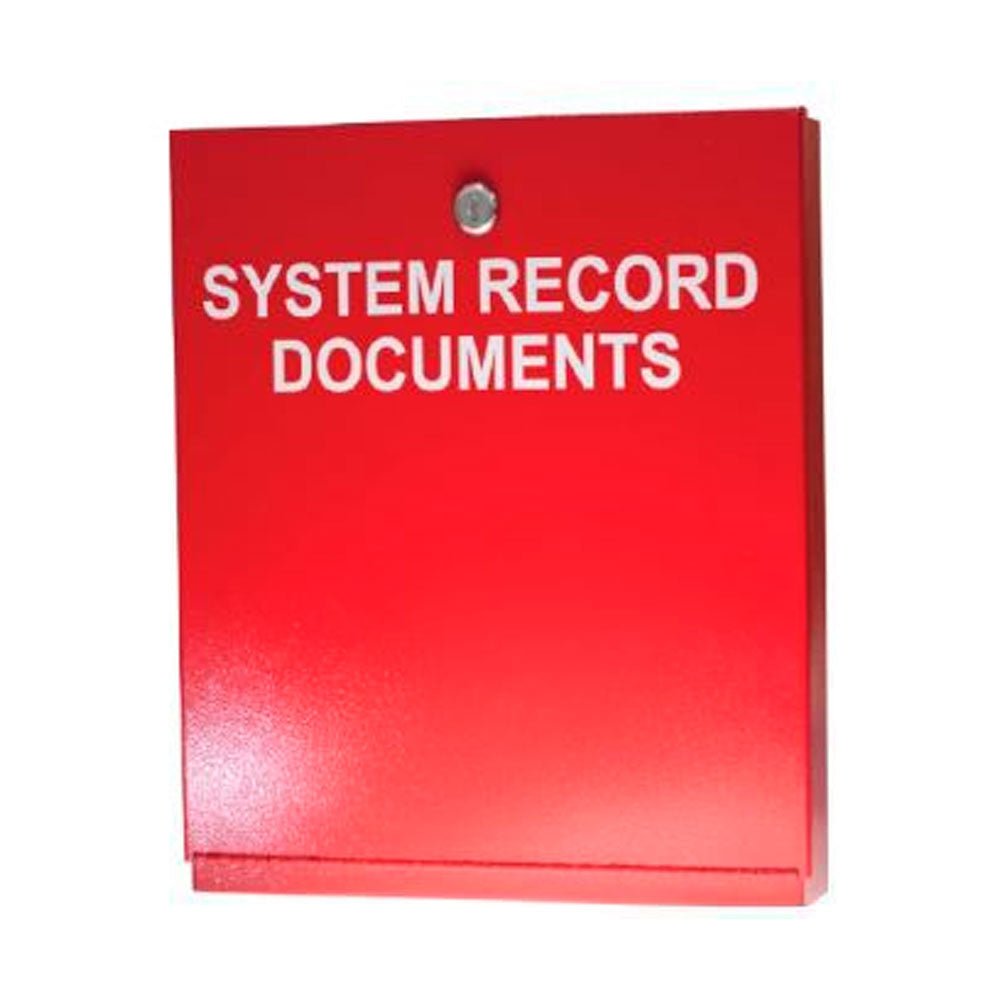

The Gamewell-FCI GW-SRD, Code-compliance documentation cabinet for fire alarm installations under NFPA 72 2013 §7.7.2.1. Includes 4 GB USB flash for digital records.

Code-driven documentation cabinet, 2013 edition

The GW-SRD is the code-compliance documentation cabinet required by NFPA 72 (2013 edition, Section 7.7.2.1) for new fire alarm installations. The 2013 code requires a documentation cabinet at the system control unit, physical location where on-site records of software, firmware, configuration, and as-built drawings live for inspector and technician access.

What ships inside

The cabinet includes a 4 GB USB flash drive mounted inside for digital records, system software backups, configuration files, building drawings, equipment manuals. Two key-ring hooks plus a business card holder for service-technician key management. Sized for paper records: as-built drawings, AHJ approval letters, periodic inspection and test reports.

GW-SRD vs GW-FAD, pick by code adoption year

Same physical form factor and listings as the GW-FAD; different code reference. GW-SRD targets NFPA 72 2013 §7.7.2.1, the more widely enforced current edition. GW-FAD targets NFPA 72 2007 §6.2.2.1, still required in jurisdictions on the 2007 adoption year. Most current installs use GW-SRD. Verify the local AHJ code adoption before ordering.

Listings and approvals

CSFM listed. NFPA 72 2013 §7.7.2.1 compliance. NEMA. ISO 9001 manufacturing.
