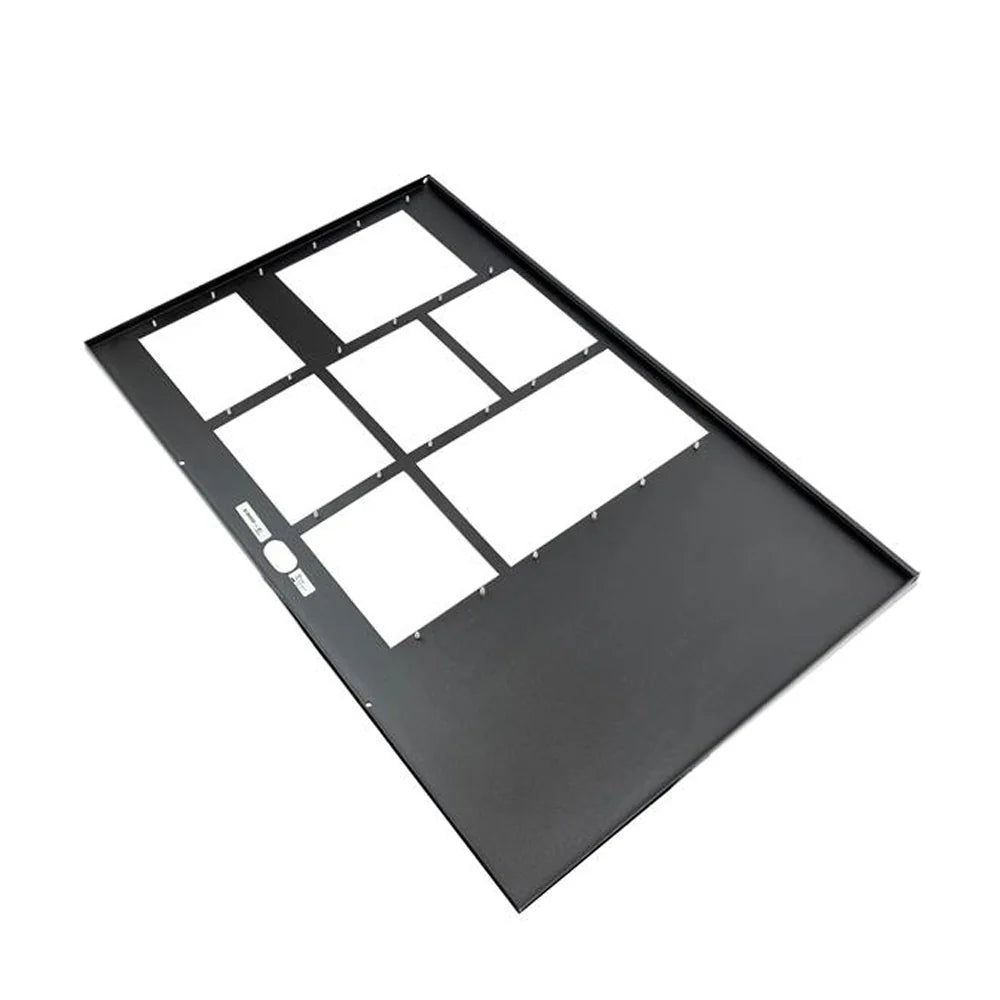

The Gamewell-FCI E3ID2-C, 2-bay inner door for C-size INCC command center. Layout: LCD-E3 + 5 ASM-16/ANU-48/NGA/MIC modules + telephone.

C-size 2-bay inner door for INCC builds

The E3ID2-C holds one LCD-E3 (or LCD-SLP) display, five ASM-16 / ANU-48 / NGA / MIC modules, and one fire fighter telephone, the standard layout for an INCC (Intelligent Network Command Center) in mid-size buildings. The two-bay split organizes the modules into operator-friendly groups: alarm acknowledgement and silence on one side, programmable switch banks on the other.

Picking 2-bay vs 3-bay C inner door

The E3ID2-C provides one LCD plus five modules. The E3ID3-C alternative drops the LCD and provides seven modules plus telephone, pick when the command center already has its display elsewhere (a separate remote LCD or an NGA touchscreen) and the cabinet space is fully dedicated to programmable switches and LED banks.

Construction and listings

Removable inner door with bonding strap for grounding continuity. Sized to mount inside the C cabinet outer enclosure (19.375 × 30 × 4.5 in). Listed per 9020-0649 cabinet datasheet revision X, UL S1869, UL 864 10th Edition, UL 2572 2nd Edition.
