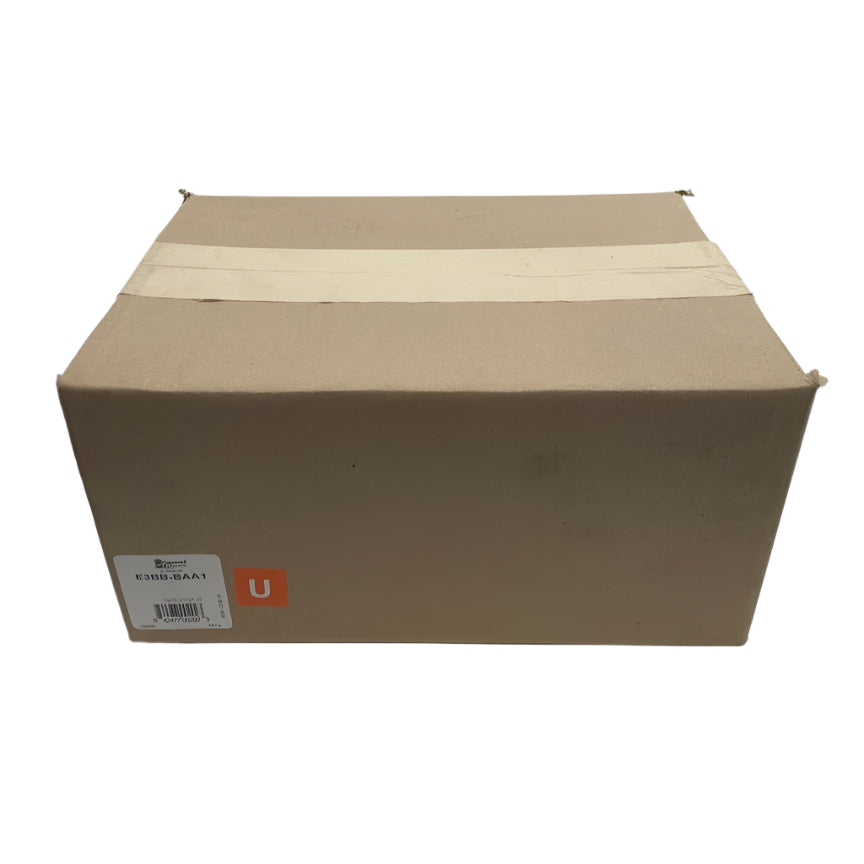

The Gamewell-FCI E3BB-BAA1, AA1-size E3 cabinet for a single remote NGA touchscreen or one ASM-16 / ANU-48 module. Compact form factor, black.

AA1 cabinet for single-module remote installations

AA1 measures 8.75 inches wide × 10 inches tall × 4.5 inches deep, the smallest E3 cabinet in the lineup. Pre-cut for one remote NGA (Network Graphic Annunciator) touchscreen, or alternatively one ASM-16 programmable switch module or one ANU-48 LED driver. Pick AA1 when only one E3 sub-assembly needs to sit at the remote location.

When to use AA1 vs A2

AA1 fits one module, NGA, ASM-16, or ANU-48. A2 (E3BB-BA2 / E3BB-RA2, 13.25 in wide) fits one LCD-E3 or LCD-SLP touchscreen, which is a larger module than the NGA. Pick by which annunciator the remote location needs: LCD = A2; NGA or single switch/LED module = AA1.

Construction and listings

16-gauge steel backbox, removable doors with bonding strap, Lexan window, keylock quarter-turn latch. UL Listed S1869 under UL 864 10th Edition and UL 2572 2nd Edition. FM Approved 3025415. MEA FDNY COA# 6077. CSFM 7165-1703-0125. VMA Seismic Certified.

Specify with the parent E3 cabinet

Order alongside the matching E3 cabinet, inner door, and mounting hardware to keep the assembly under one listed configuration. Confirm the current Gamewell-FCI part-number cross-reference and revision against the 9020-0649 cabinet datasheet before specifying for jurisdiction-sensitive projects so that the as-built record matches the published listing matrix.
