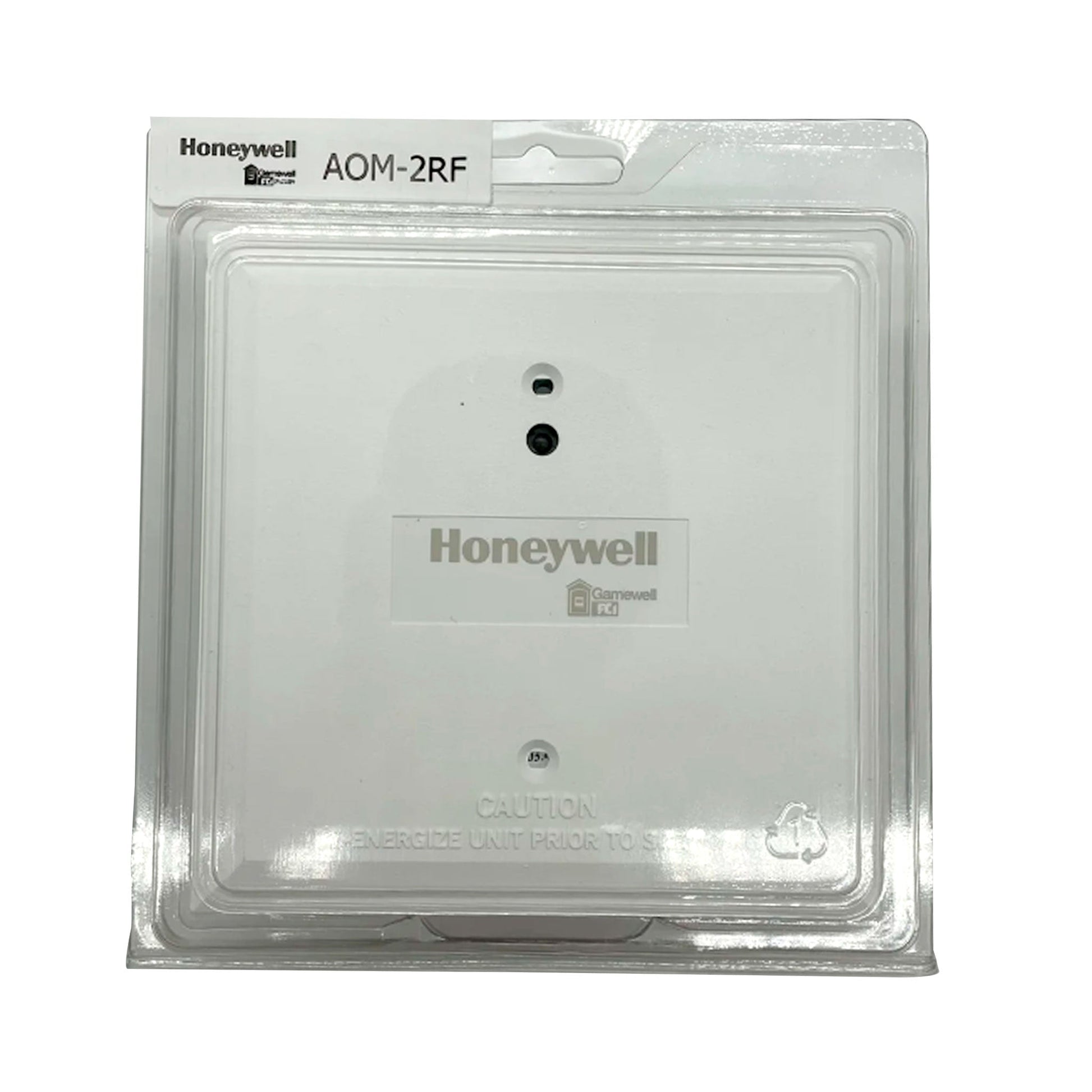

Gamewell-FCI AOM-2RF Addressable Output Relay Control Module — 2× Form-C Dry Contacts

Reliable Addressable Output Relay Control Module — 2× Form-C Dry Contacts for Commercial Fire Alarm Systems

The Gamewell-FCI AOM-2RF Addressable Output Relay Control Module — 2× Form-C Dry Contacts is a Addressable output relay control module — 2× Form-C dry contacts designed for use in compatible Gamewell-FCI fire alarm systems. This product supports professional fire alarm installations, service replacements, and system expansion projects where dependable performance and correct system compatibility are essential.

Velociti addressable relay module with two isolated Form-C contacts. Panel-coded switching for door releases, dampers, HVAC interfaces.

Key Features

• Two isolated Form-C dry contacts, simultaneous transfer
• Panel-coded switching from Gamewell-FCI SLC
• Contact ratings up to 3 A @ 30 VDC resistive (non-coded)
• Velociti or CLIP mode (auto, panel-dependent)
• Visual rotary decimal addressing, 01 to 159
• Bi-color LED, green poll-flash, red on activation
• Mounts in 4-inch square junction box, 2⅛ in deep
• Contacts not supervised (use AOM-2SF for supervised NAC)
• Velociti CLIP system compatibility
• Designed for compatible Gamewell-FCI fire alarm systems

Ideal Applications

• Door release and magnetic hold-open control
• HVAC fan shutdown and damper actuation
• Security and access-control interface
• General-purpose code-driven relay switching from the fire panel

Why Choose the AOM-2RF?

The AOM-2RF helps support a reliable, serviceable fire alarm system by matching the required device type, platform, and application needs. It is a strong choice for contractors, facility managers, and service companies looking for genuine Gamewell-FCI equipment for commercial fire protection projects.

Technical Specifications

• Manufacturer: Gamewell-FCI
• Model: AOM-2RF
• Product Type: Addressable output relay control module — 2× Form-C dry contacts
• Series: AOM Output Module Family
• Protocol / Platform: Velociti CLIP
• Voltage Range: Operates from SLC; contact rating up to 125 VAC / 110 VDC
• Standby Current: 0.000375 A (375 µA supervisory)
• Alarm Current: 0.0065 A; avg operating 255 µA (Velociti) / 230 µA (CLIP)
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• Humidity Range: 10% to 93% non-condensing
• Air Velocity Range: Not applicable
• Dimensions: 4.5 in H × 4 in W × 1.25 in D (11.4 × 10.2 × 3.2 cm)
• Weight: Not specified
• Certifications: UL Standard: UL 864 (9th Edition), UL Listing: S1913, FM Approved: 3023594
• Compatible Bases: 4-inch square junction box, 2⅛ in deep
• Compatible Panels: Gamewell-FCI E3 Series (Velociti / CLIP), Gamewell-FCI S3 Series (Velociti / CLIP), Gamewell-FCI GWF-7075 (Velociti only — LED red-only on this panel)
