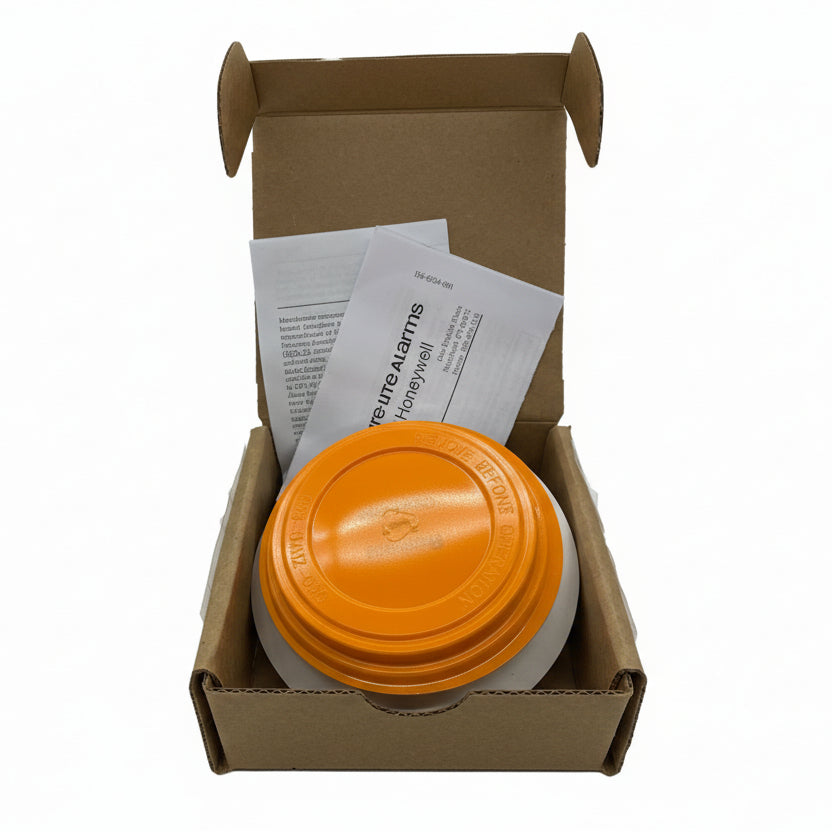

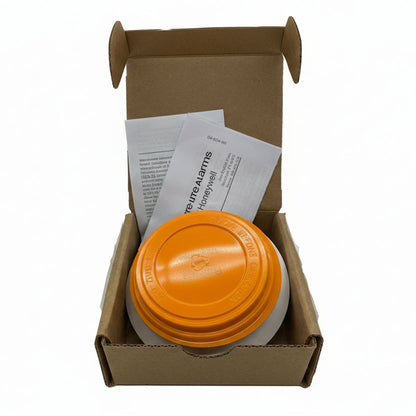

Fire-Lite SD365R addressable photoelectric duct smoke detector.

Compliance

• UL 268 listed
• UL 268A listed (duct applications)
• NFPA 72 compatible

Key features

• Photoelectric sensing chamber rated for air velocity 0 to 4000 ft./min.
• Operating temperature -4°F to 158°F (-20°C to 70°C) in duct applications
• Alarm current 2 mA at 24 VDC with red LED solid on
• Rotary dial switches for SLC address assignment

Duct smoke detectors monitor the air moving through HVAC ductwork and initiate shutdown or alarm signals when smoke is present in the airstream. The SD365R uses a photoelectric chamber optimized for duct environments, where airflow velocities and smoke concentrations differ from open-area sensing. It mounts to a duct housing (sold separately) and connects to an addressable SLC panel using LiteSpeed protocol, providing individual point identification at the fire alarm control panel.

Verify panel/device family compatibility before ordering.
