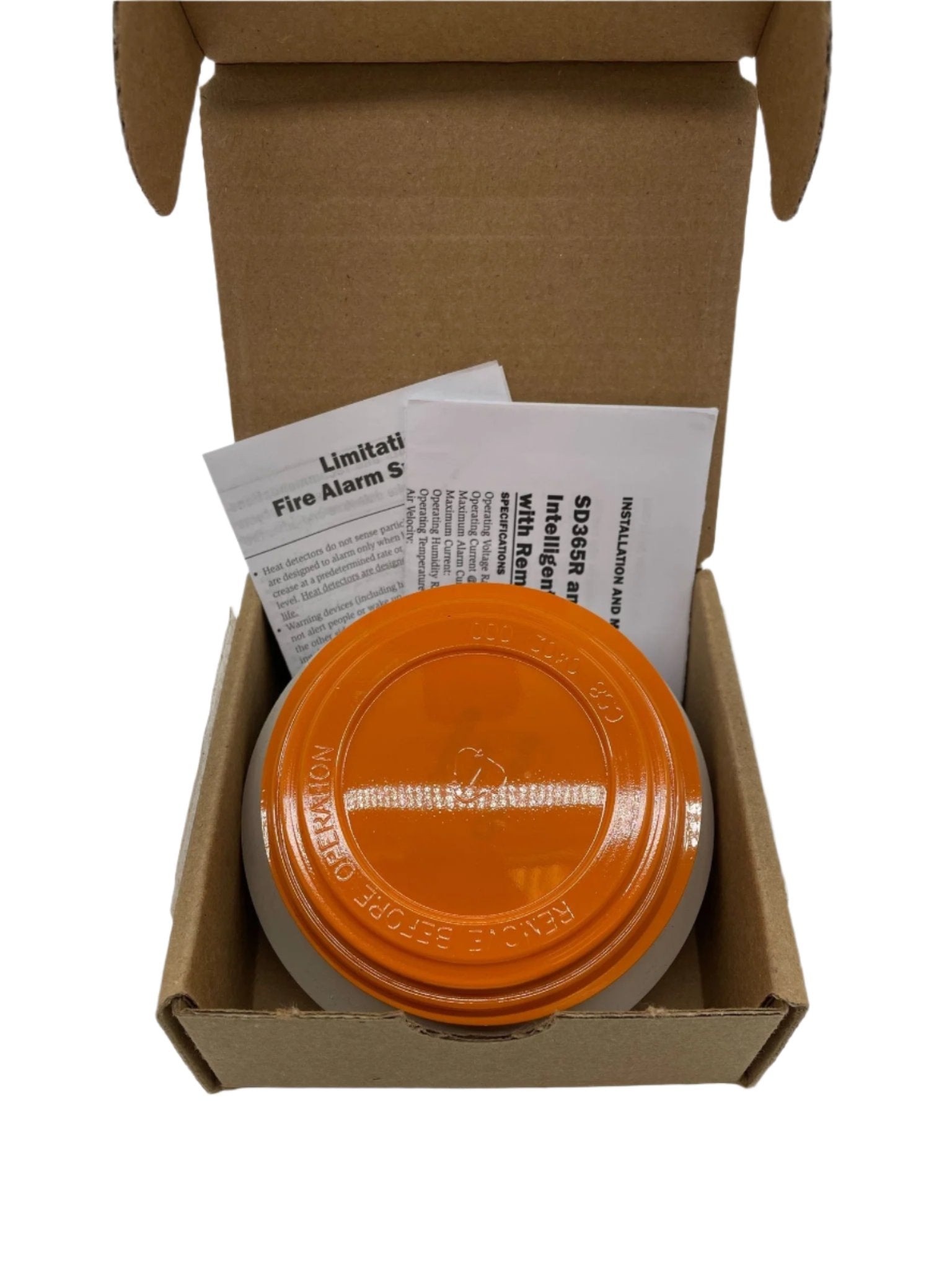

Fire-Lite SD365R-IV addressable photoelectric duct smoke detector in ivory finish.

Compliance

• UL 268 listed
• UL 268A listed (duct applications)
• NFPA 72 compatible

Key features

• Photoelectric sensing chamber rated for air velocity 0 to 4000 ft./min.
• Extended operating temperature -4°F to 158°F (-20°C to 70°C) in duct installations
• Alarm current 2 mA at 24 VDC; communicates every 5 seconds with red LED solid on
• Ivory color finish (-IV suffix) for visual coordination in certain facility environments

The SD365R-IV is the ivory-finish variant of the SD365R duct smoke detector. It uses a photoelectric sensing chamber designed for the airflow conditions inside HVAC ductwork, where velocity can reach 4000 ft./min. The detector mounts to a compatible duct housing and connects to the Fire-Lite addressable SLC using LiteSpeed protocol. When smoke is detected in the airstream, the panel can trigger HVAC shutdown sequences or initiate building-wide alarm notification as programmed.

Verify panel/device family compatibility before ordering.
