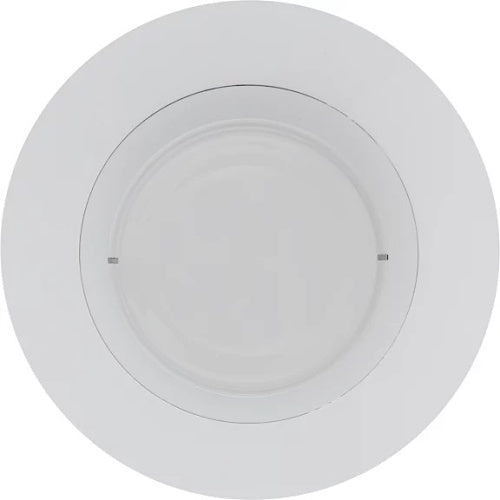

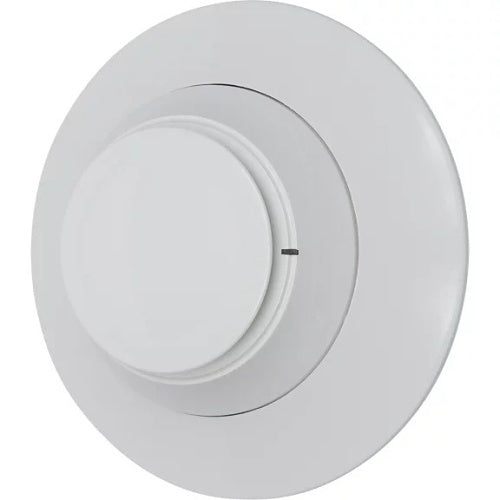

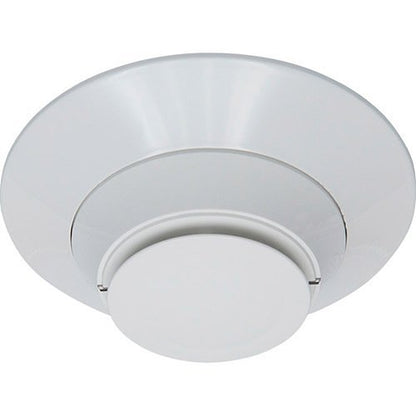

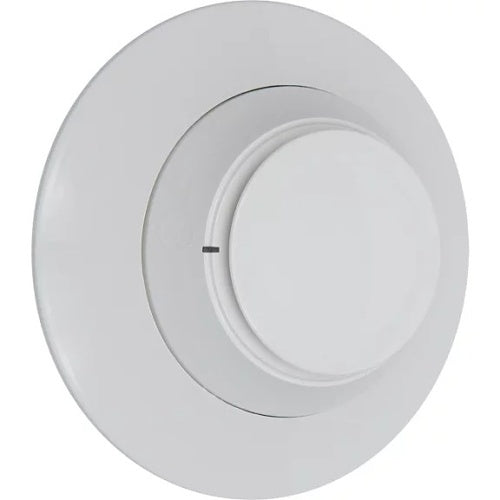

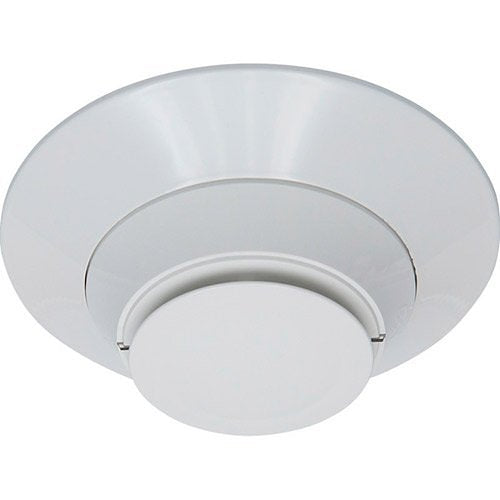

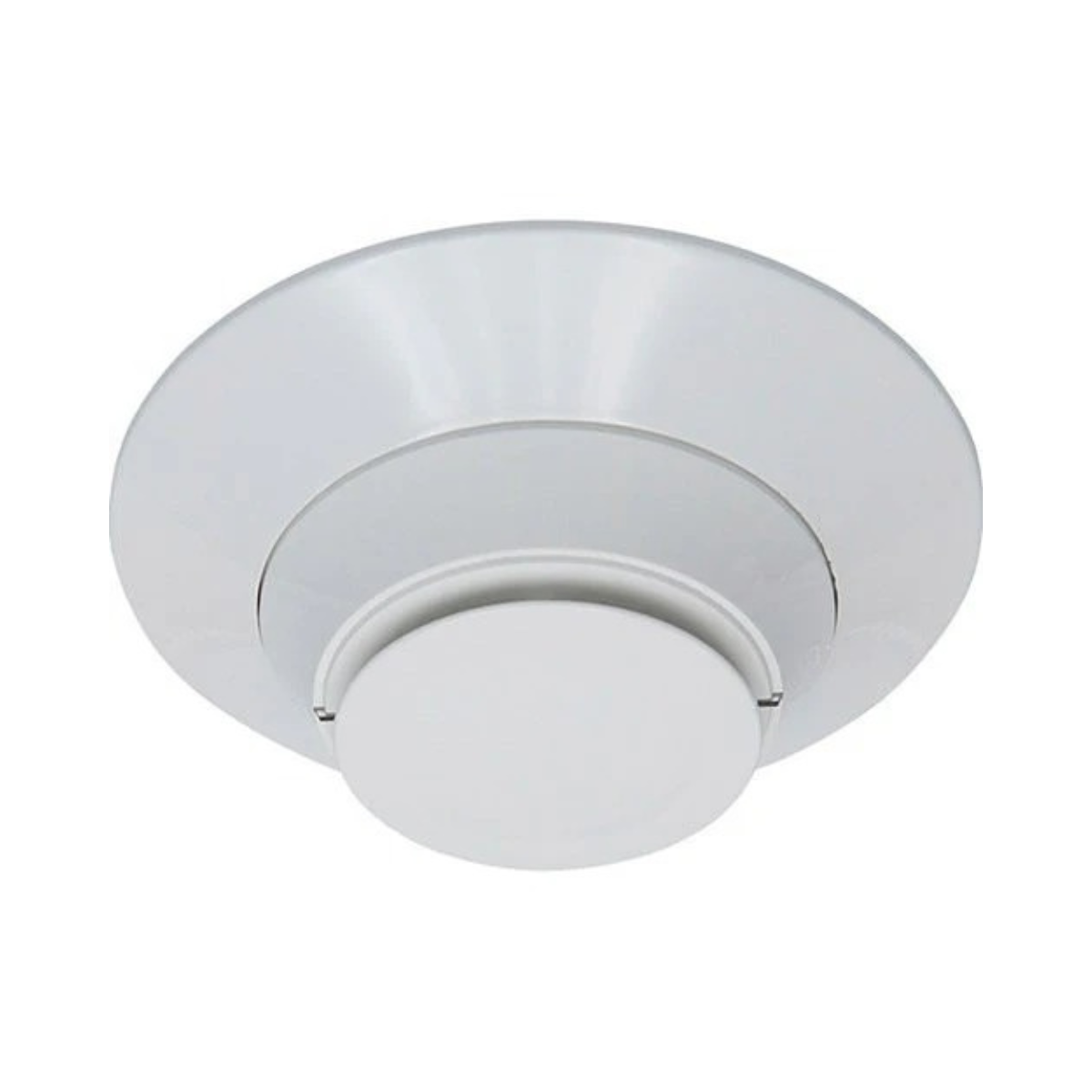

Fire-Lite SD365 Photoelectric Smoke Detector
50+ In Stock - Fast Shipping
Fire-Lite SD365 Photoelectric Smoke Detector.
Compliance
- UL 268
- NFPA 72
- ULC listing
Key features
- Two-wire SLC loop connection
- Unit uses base for wiring
- Compatible with LiteSpeed™ and CLIP protocol systems
Verify panel/device family compatibility before ordering.
Payment method
Shipping and Delivery
Free delivery on orders over $100 to US Continental
Return
Free 30-day returns
Replaces SD355
Specifications
- Voltage Range
- 15-32 VDC peak
- Standby Current
- 200 µA @ 24 VDC (max avg)
- Alarm Current
- 4.5 mA @ 24 VDC (ON state)
- Sensitivity
- 0.5%-4.0% per foot obscuration (UL); 0.5%-3.5% (ULC)
- Operating Temperature
- 32°F to 122°F (0°C to 50°C)
- Humidity Range
- 10-93% non-condensing
- Velocity Range
- 0-4000 ft/min (UL/ULC listed)
- Dimensions
- 2.0" H × 6.1" diameter (with B300-6 base)
- Weight
- 3.4 oz (95 g)
- Mounting
- Direct surface or electrical box (≥1.5" deep)
- Material
- Fire-resistant plastic
- Available Colors
- WhiteIvoryBlack
Compatibility
Protocol family: Fire-Lite Addressable (LiteSpeed / CLIP)
Supported protocols
- LiteSpeed
- CLIP
Mounting BasesOPTIONAL UPGRADE
Liquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquidLiquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquidLiquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquidLiquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquidLiquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquidLiquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquidLiquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquidLiquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquid
Control Panels
Liquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquidLiquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquidLiquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquidLiquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquidLiquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquid
Pull Stations
Liquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquid
Monitor Modules
Liquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquidLiquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquidLiquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquidLiquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquid
Relay Modules
Liquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquidLiquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquid
Control Modules
Liquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquidLiquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquid
Annunciators
Liquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquidLiquid error (sections/fa-product-specs line 134): Could not find asset snippets/fa-compat-card.liquid
Certifications & Compliance
- UL Listed S1059
- ULC Listed S1059
- FM Approved
- CSFM 7272-0075:0502
