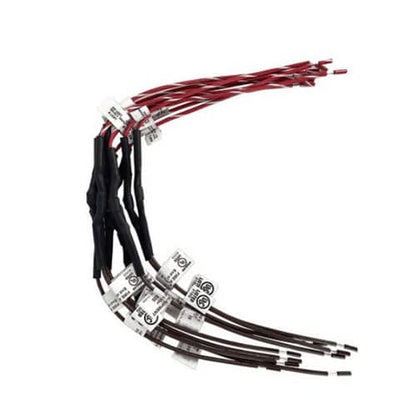

Fire-Lite REL-47K 47k ohm end-of-line resistor.

Compliance

• UL component recognized for supervised fire alarm initiating circuits
• NFPA 72 Style B compatible

Key features

• 47k ohm fixed resistance for supervising initiating device circuits on Fire-Lite addressable monitor modules
• Through-hole leaded resistor for field termination at the last device on the supervised circuit
• Color-banded body for at-a-glance value verification during commissioning
• Compatible with MMF-300-series monitor modules and other Fire-Lite addressable inputs specifying a 47k EOL

End-of-line resistors are used to electrically terminate Class B initiating device circuits so that the fire alarm control panel or monitor module can supervise the field wiring for open faults. The resistor sits at the last device on the loop and draws a defined standby current that the monitor circuit watches continuously — any deviation outside the supervision window triggers a trouble condition at the panel. The 47k ohm value is specified by Fire-Lite for the input side of MMF-300-series addressable monitor modules and several other supervised inputs; the panel or module datasheet should be consulted to confirm the correct EOL value for each circuit.

Verify panel/device family compatibility before ordering.
