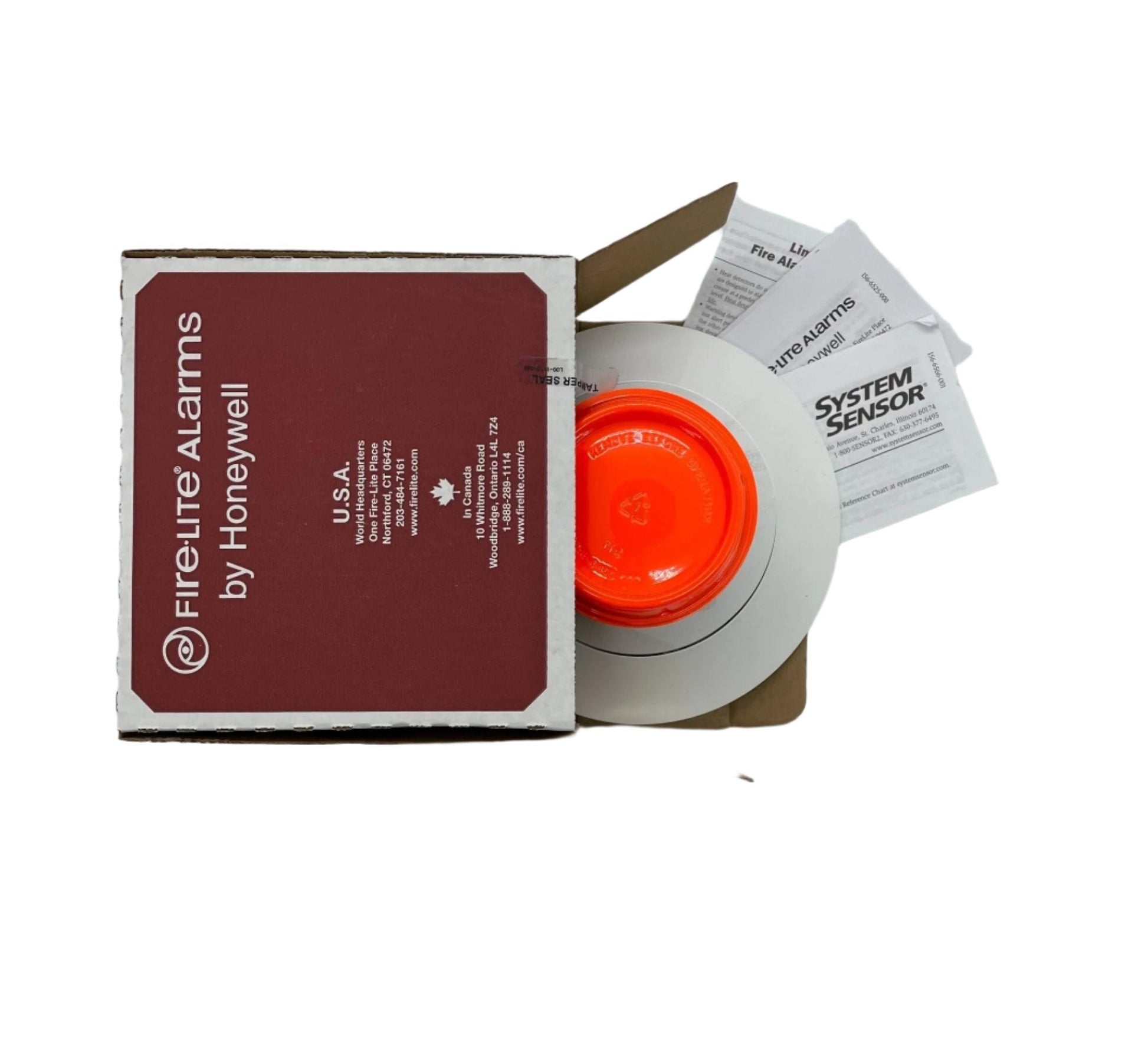

Fire-Lite H365R rate-of-rise addressable heat detector.

Compliance

• UL 268 listed (7th Edition)
• ULC listed
• FM Approved
• NFPA 72 compatible

Key features

• Rate-of-rise sensing triggers at 15°F (8.3°C) temperature rise per minute
• Two-wire SLC loop connection; wiring at separate B300-6(A) flanged base
• Rotary decimal addressing for individual SLC point identification
• Built-in functional test switch activated by external magnet
• Remote walk-test with address display from the panel

Rate-of-rise heat detectors respond to rapid increases in ambient temperature, rather than relying solely on a fixed threshold. The H365R activates when temperature climbs faster than 15°F per minute, making it sensitive to fast-developing fires while tolerating normal temperature fluctuations in kitchens, mechanical rooms, and other warm environments. The interchangeable base system allows field substitution between sensor head types without disturbing existing wiring, and the built-in tamper-resistant feature protects against inadvertent removal.

Verify panel/device family compatibility before ordering.
