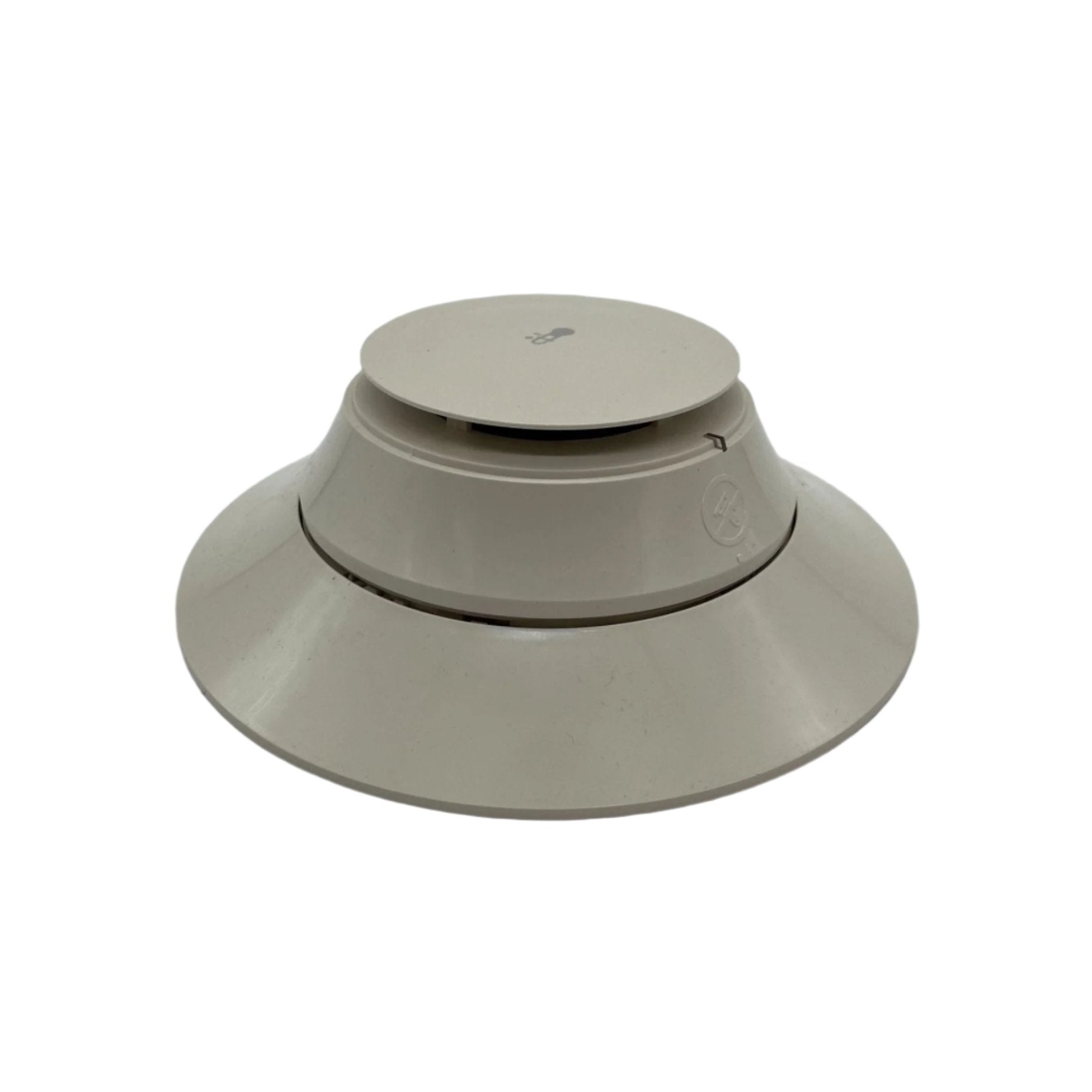

Fire-Lite H365-IV addressable fixed-temperature heat detector in ivory finish.

Compliance

• UL 521 listed
• UL listed compatible
• FM classified (FM 3210)
• NFPA 72 compatible

Key features

• Fixed temperature setpoint rated at 135°F (57°C)
• Alarm current 2 mA at 24 VDC on the SLC loop
• Operating voltage 15 to 32 VDC peak
• Ivory color finish (-IV suffix) to coordinate with ceiling and trim aesthetics

The H365-IV is the ivory-finish variant of the H365 fixed-temperature heat detector. Heat detectors trigger when ambient temperature at the device reaches the fixed calibration point (135°F/57°C for this model), providing a reliable alarm initiation mechanism in environments where smoke detectors are inappropriate — such as kitchens, boiler rooms, and dusty industrial spaces. The detector mounts on the standard B300-6(A) base and communicates on the addressable SLC, with each unit individually identified by its rotary decimal address switch setting.

Verify panel/device family compatibility before ordering.
