Fire-Lite

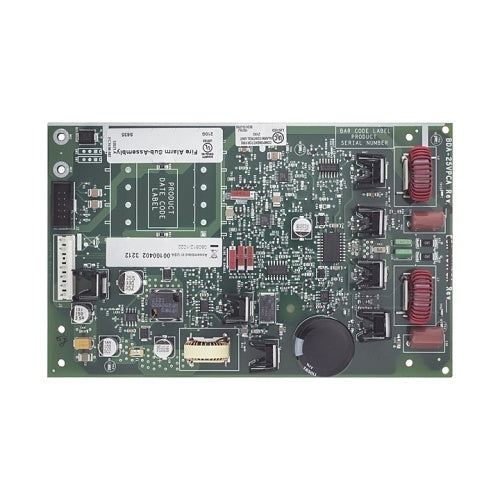

Fire-Lite ECC-50W-25V Emergency Voice Evacuation Amplifier
25 in stock
Fire-Lite ECC-50W-25V 50-watt 25-volt audio amplifier for the ECC Emergency Command Center.
Compliance
- UL 2572 listed (mass notification)
- UL 864 listed
- UL 1480 listed (speakers)
- NFPA 72 compatible
Key features
- 50-watt amplifier output at 25 V for 25-volt distributed speaker systems
- Installs as a module within the ECC-50/100 chassis
- Supports pre-recorded evacuation messages and live voice page broadcasting across assigned zones
- Designed for systems using 25-volt speaker wiring configurations
The 25-volt distributed audio standard is used in smaller commercial fire alarm voice evacuation systems or in installations where 70-volt wiring is not required by design. The ECC-50W-25V provides 50 watts of amplified 25 V output within the ECC chassis and is used in place of the 70V variant when the speaker system is designed around 25-volt tap impedance values. Amplifier module selection (25 V vs. 70 V) must be consistent with the speaker tap wattage ratings selected during system design, and the total connected speaker wattage must not exceed the module's rated output capacity.
Verify panel/device family compatibility before ordering.
