Fire-Lite

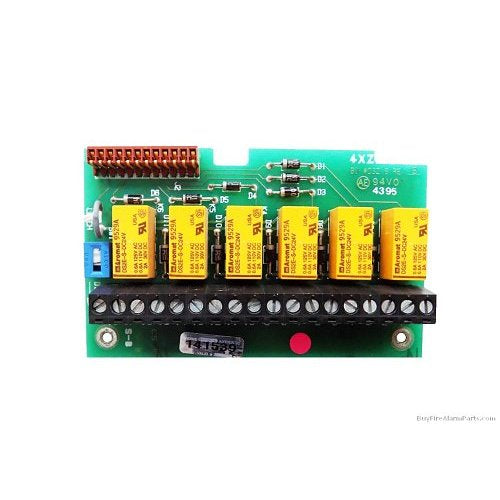

Fire-Lite 4XZMF Relay Module
7 in stock
Fire-Lite 4XZMF four-zone conventional relay module for compatible Fire-Lite panels.
Compliance
- UL listed (9th edition)
- CSFM listed
- FM listed
- MEA listed
Key features
- Four independently programmable relay outputs for zone-based auxiliary control
- Compatible with Fire-Lite conventional panel families
- Each relay can be programmed to activate on alarm, supervisory, or trouble conditions
- Used for door holder release, HVAC shutdown, elevator recall, and auxiliary notification
Zone relay modules provide multiple independently controlled switching outputs that the fire alarm control panel uses to trigger auxiliary building systems when alarm or supervisory conditions occur. The 4XZMF provides four relay outputs that can be individually assigned to zones or system events — enabling differentiated responses such as stairwell door holder release on alarm, HVAC damper closure on supervisory, or elevator recall on specific floor activation. Relay contact ratings must be matched to the connected load; verify the contact current and voltage specifications against the controlled device requirements.
Verify panel/device family compatibility before ordering.
